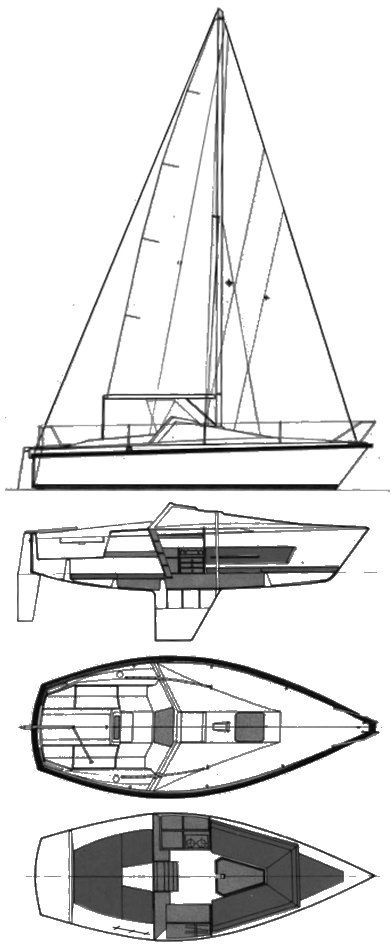

GUY 22
• Designed by Guy-Christer Lönngren
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1978
Dimensions
Length Overall (LOA):
6.60 m
Length Waterline (LWL):
5.60 m
Beam:
2.50 m
Draft (Max):
1.40 m
Weight & Ballast
Displacement:
1,740 kg
Ballast:
590 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
11.72 m²
Mainsail Area:
8.40 m²
Sail Area:
20.13 m²
Sail Area (reported):
20.16 m²
I (Fore Triangle Height):
8.75 m
J (Fore Triangle Base):
2.68 m
P (Mainsail Hoist):
7.78 m
E (Boom Length):
2.16 m
Est. Forestay Length:
9.15 m
Engine & Systems
Performance Ratios
Hull Speed:
5.74 knots
SA/Displacement (Calc):
14.18
SA/Displacement (Reported):
14.21
Ballast/Disp Ratio:
33.89%
Displacement/Length:
276.25
Comfort Ratio:
18.57
Capsize Screening:
2.10
S-Number:
1.69
Immersion:
96 kg/cm
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
