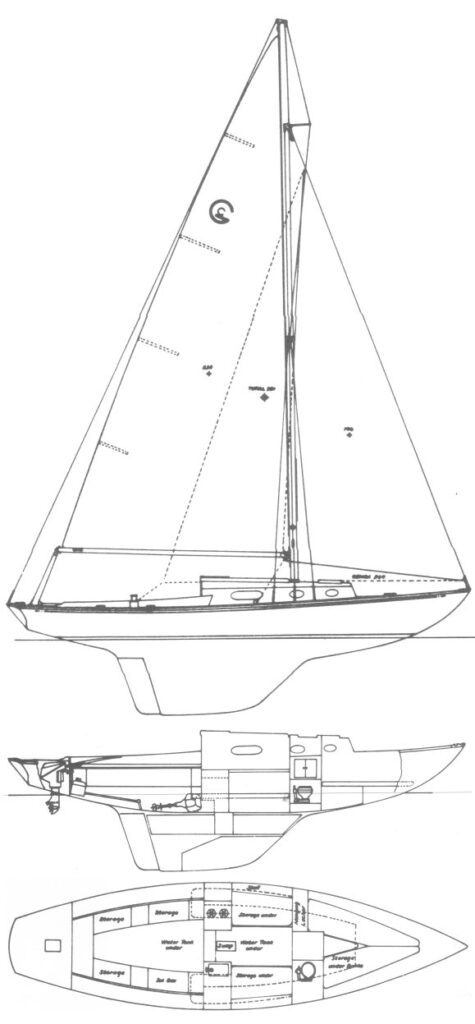

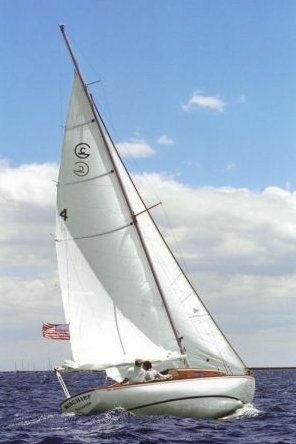

GRAVES CONSTELLATION
Built by Graves Yacht Yard (USA)
• Designed by E. Selman Graves
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin Keel
Rigging Type:
Fractional Sloop
First Built:
1964
Last Built:
1971
Number Built:
27
Dimensions
Length Overall (LOA):
8.97 m
Length Waterline (LWL):
6.17 m
Beam:
2.44 m
Draft (Max):
1.42 m
Weight & Ballast
Displacement:
2,722 kg
Ballast:
1,247 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
15.30 m²
Mainsail Area:
22.43 m²
Sail Area:
37.73 m²
Sail Area (reported):
36.23 m²
I (Fore Triangle Height):
9.30 m
J (Fore Triangle Base):
3.29 m
P (Mainsail Hoist):
10.15 m
E (Boom Length):
4.42 m
Est. Forestay Length:
9.86 m
Engine & Systems
Performance Ratios
Hull Speed:
6.03 knots
SA/Displacement (Calc):
19.74
SA/Displacement (Reported):
18.96
Ballast/Disp Ratio:
45.83%
Displacement/Length:
322.57
Comfort Ratio:
25.26
Capsize Screening:
1.76
S-Number:
1.76
Immersion:
103 kg/cm
Notes
Thanks to Ken Weller, (owner of the last CONSTELLATION to be built) for providing corrected information on this yacht.
