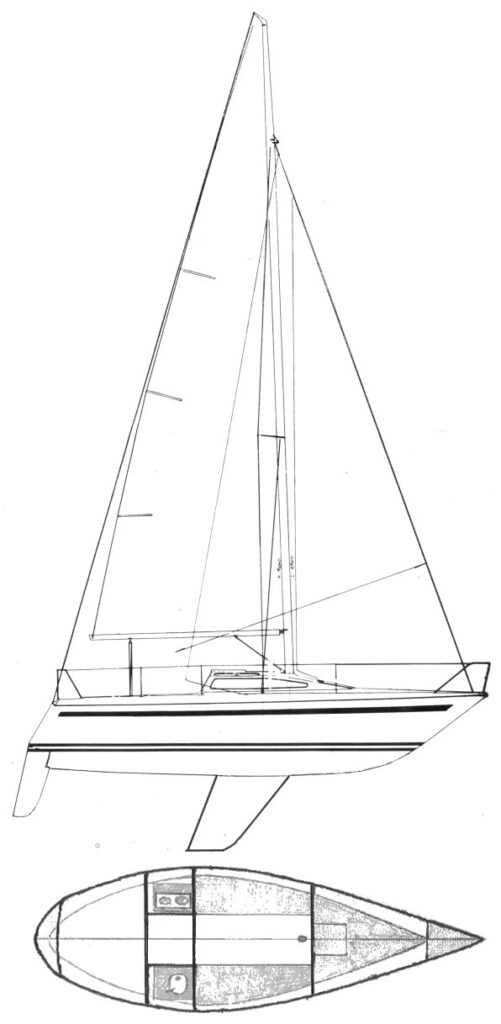

GRANADA 23
Built by Gesten Glasfiber Bådeværft (DEN)
• Designed by Elvstrøm & Kjærulff
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
First Built:
1976
Last Built:
1981
Dimensions
Length Overall (LOA):
7.02 m
Length Waterline (LWL):
6.00 m
Beam:
2.30 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
1,700 kg
Ballast:
830 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
11.61 m²
Mainsail Area:
13.42 m²
Sail Area:
25.03 m²
Sail Area (reported):
24.99 m²
I (Fore Triangle Height):
8.60 m
J (Fore Triangle Base):
2.70 m
P (Mainsail Hoist):
9.26 m
E (Boom Length):
2.90 m
Est. Forestay Length:
9.01 m
Engine & Systems
Performance Ratios
Hull Speed:
5.94 knots
SA/Displacement (Calc):
17.91
SA/Displacement (Reported):
17.89
Ballast/Disp Ratio:
48.83%
Displacement/Length:
219.52
Comfort Ratio:
18.95
Capsize Screening:
1.95
S-Number:
2.58
Immersion:
95 kg/cm
