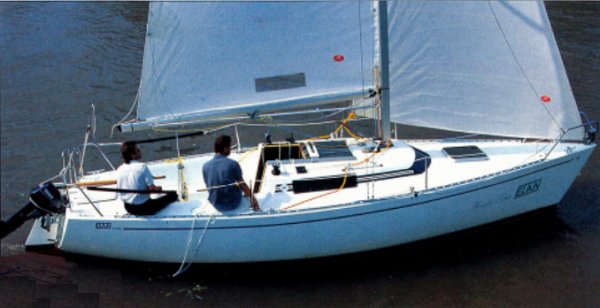

ELAN EXPRESS
Built by Elan Marine
• Designed by Peter Norlin
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
First Built:
1982
Dimensions
Length Overall (LOA):
7.77 m
Length Waterline (LWL):
6.58 m
Beam:
2.50 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
1,800 kg
Ballast:
800 kg
Sail Plan
Foresail Area:
13.58 m²
Mainsail Area:
15.91 m²
Sail Area:
29.49 m²
Sail Area (reported):
29.45 m²
I (Fore Triangle Height):
8.90 m
J (Fore Triangle Base):
3.05 m
P (Mainsail Hoist):
9.50 m
E (Boom Length):
3.35 m
Est. Forestay Length:
9.41 m
Engine & Systems
Performance Ratios
Hull Speed:
6.22 knots
SA/Displacement (Calc):
20.32
SA/Displacement (Reported):
20.29
Ballast/Disp Ratio:
44.46%
Displacement/Length:
176.27
Comfort Ratio:
16.34
Capsize Screening:
2.07
S-Number:
3.41
Immersion:
113 kg/cm
Notes
Same hull design as the ALBIN EXPRESS with different deck among other details.
