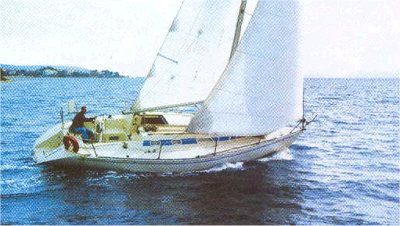

ELAN 33
Built by Elan Marine (SVN)
• Designed by Jacobin Design
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
First Built:
1987
Dimensions
Length Overall (LOA):
10.35 m
Length Waterline (LWL):
7.60 m
Beam:
3.30 m
Draft (Max):
1.70 m
Weight & Ballast
Displacement:
3,353 kg
Ballast:
1,219 kg
Sail Plan
Foresail Area:
21.27 m²
Mainsail Area:
18.47 m²
Sail Area:
39.74 m²
Sail Area (reported):
39.76 m²
I (Fore Triangle Height):
11.83 m
J (Fore Triangle Base):
3.60 m
P (Mainsail Hoist):
10.27 m
E (Boom Length):
3.60 m
Est. Forestay Length:
12.36 m
Engine & Systems
Performance Ratios
Hull Speed:
6.69 knots
SA/Displacement (Calc):
18.09
SA/Displacement (Reported):
18.10
Ballast/Disp Ratio:
36.36%
Displacement/Length:
213.24
Comfort Ratio:
17.31
Capsize Screening:
2.23
S-Number:
2.67
Immersion:
172 kg/cm
Notes
Popular model in the european charter fleet.
