DRAIJER 5.70
Built by HVM Shipyard (NED)
• Designed by Prof. Ir. W. Draijer
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
First Built:
1965
Last Built:
1974
Number Built:
200
Dimensions
Length Overall (LOA):
5.74 m
Length Waterline (LWL):
4.90 m
Beam:
2.00 m
Draft (Max):
0.95 m
Max Height:
8.31 m
Weight & Ballast
Displacement:
600 kg
Ballast:
200 kg

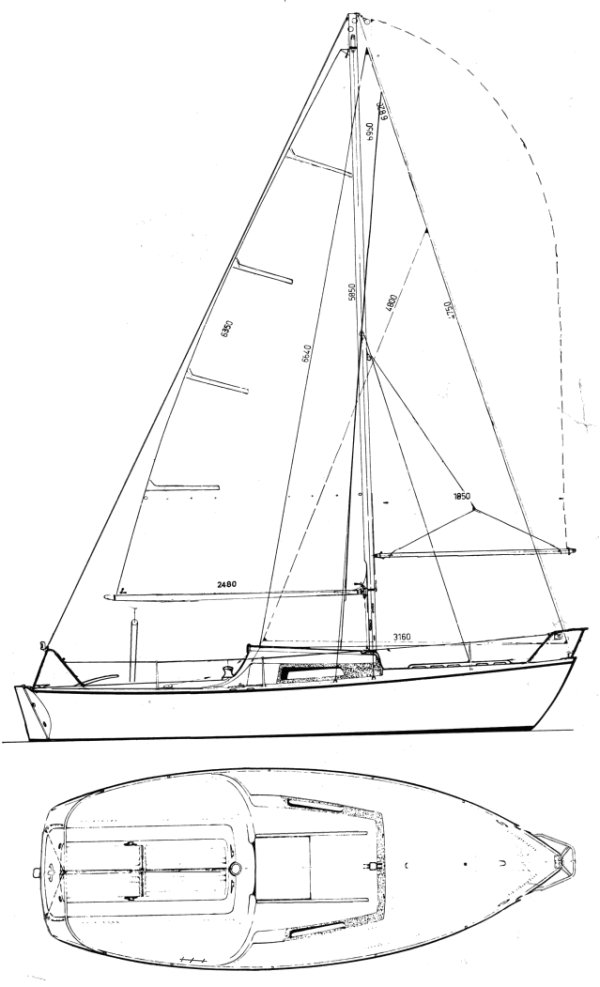

Sail Plan
Foresail Area:
6.43 m²
Mainsail Area:
7.26 m²
Sail Area:
13.68 m²
Sail Area (reported):
13.66 m²
I (Fore Triangle Height):
6.95 m
J (Fore Triangle Base):
1.85 m
P (Mainsail Hoist):
5.85 m
E (Boom Length):
2.48 m
Est. Forestay Length:
7.19 m
Engine & Systems
Performance Ratios
Hull Speed:
5.37 knots
SA/Displacement (Calc):
19.60
SA/Displacement (Reported):
19.56
Ballast/Disp Ratio:
33.33%
Displacement/Length:
142.05
Comfort Ratio:
9.87
Capsize Screening:
2.39
S-Number:
3.87
Immersion:
67 kg/cm
Notes
Designed by a Dutch professor of mechanical engineering, with students developing the construction of the molds and the first few boats.
