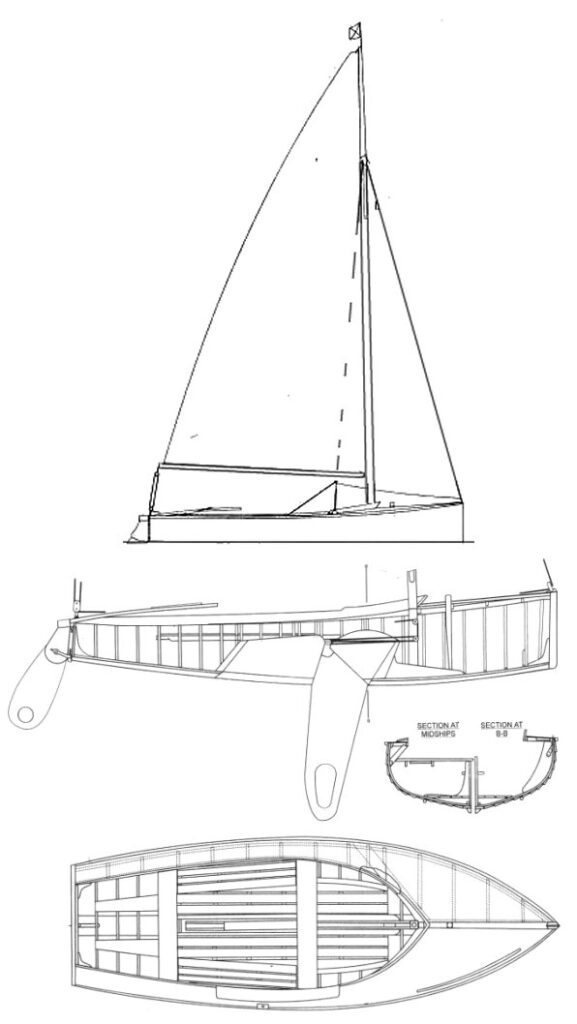

DRAGONFLY ONE-DESIGN
Built by Nunn Brothers (UK)
• Designed by George O'Brien Kennedy
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
First Built:
1946
Number Built:
63
Dimensions
Length Overall (LOA):
4.27 m
Length Waterline (LWL):
3.96 m
Beam:
1.52 m
Draft (Max):
1.37 m
Draft (Min):
0.20 m
Weight & Ballast
Displacement:
102 kg
Sail Plan
Sail Area (reported):
11.61 m²
Engine & Systems
Performance Ratios
Hull Speed:
4.83 knots
SA/Displacement (Reported):
54.11
Displacement/Length:
45.72
Comfort Ratio:
3.06
Capsize Screening:
3.29
Immersion:
41 kg/cm
Notes
Based on the Irish Dinghy Racing Association (IDRA) 14 Footer, some 40 Dragonflies were built on the River Deben, for the Waldringfield Sailing Club. Built between 1940’s and 50’s, a number of the original Dragonflies are still actively raced at Waldringfield Sailing Club.
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
