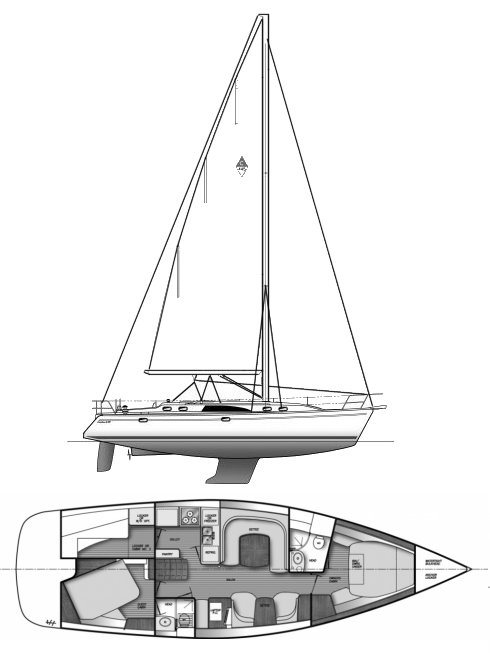

CATALINA 445
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2009
Dimensions
Length Overall (LOA):
13.54 m
Length on Deck (LOD):
13.18 m
Length Waterline (LWL):
11.68 m
Beam:
4.14 m
Draft (Max):
2.11 m
Max Height:
19.15 m
Weight & Ballast
Displacement:
10,659 kg
Ballast:
3,266 kg
Sail Plan
Foresail Area:
38.94 m²
Mainsail Area:
40.67 m²
Sail Area:
79.61 m²
Sail Area (reported):
79.53 m²
I (Fore Triangle Height):
16.31 m
J (Fore Triangle Base):
4.78 m
P (Mainsail Hoist):
15.70 m
E (Boom Length):
5.18 m
Est. Forestay Length:
16.99 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH5
Engine Power:
54 HP
Fuel Capacity:
250 L
Water Capacity:
678 L
Performance Ratios
Hull Speed:
8.30 knots
SA/Displacement (Calc):
16.78
SA/Displacement (Reported):
16.76
Ballast/Disp Ratio:
30.64%
Displacement/Length:
186.30
Comfort Ratio:
28.03
Capsize Screening:
1.90
S-Number:
2.85
Immersion:
332 kg/cm
Notes
Wing Keel - draft: 5'/1.52m; ballast: 8200lbs/3714kg; displacement: 24,500lbs/11,113kg
