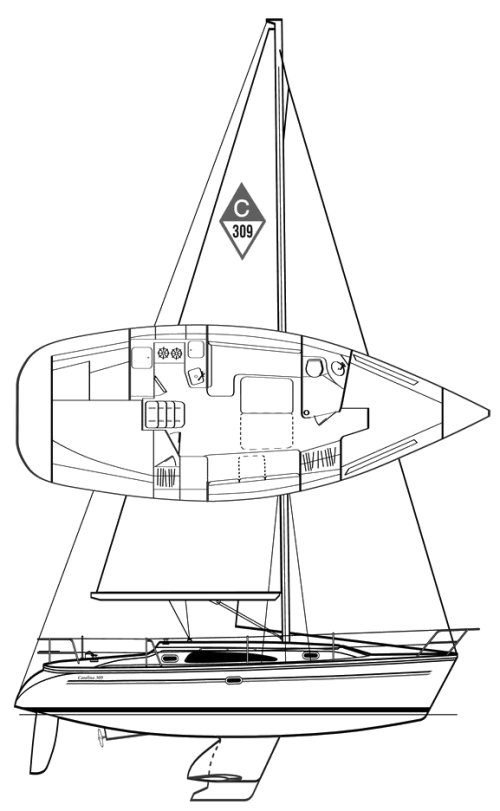

CATALINA 309
Built by Catalina Yachts
• Designed by Gerry Douglas
Help improve this yacht's listing by uploading your own images.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
First Built:
2005
Last Built:
2012
Dimensions
Length Overall (LOA):
9.98 m
Length on Deck (LOD):
9.45 m
Length Waterline (LWL):
8.08 m
Beam:
3.51 m
Draft (Max):
1.91 m
Max Height:
14.71 m
Weight & Ballast
Displacement:
4,445 kg
Ballast:
1,814 kg
Sail Plan
Foresail Area:
23.83 m²
Mainsail Area:
24.75 m²
Sail Area:
48.58 m²
Sail Area (reported):
48.59 m²
I (Fore Triangle Height):
13.03 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
11.81 m
E (Boom Length):
4.19 m
Est. Forestay Length:
13.53 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3YM20
Engine Power:
21 HP
Fuel Capacity:
102 L
Water Capacity:
174 L
Performance Ratios
Hull Speed:
6.90 knots
SA/Displacement (Calc):
18.33
SA/Displacement (Reported):
18.33
Ballast/Disp Ratio:
40.82%
Displacement/Length:
235.09
Comfort Ratio:
20.64
Capsize Screening:
2.15
S-Number:
2.45
Immersion:
194 kg/cm
Notes
Wing Keel - draft:4.33 ft / 1.32 m.; ballast: 4.400 lbs / 1,996 kg; Displacement: 10,200 lbs / 4,627 kg
