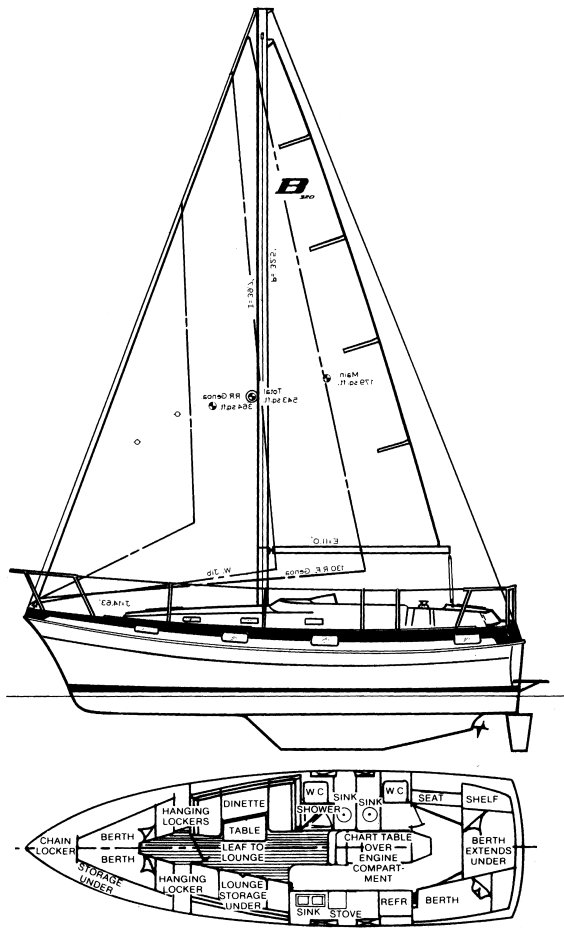

BUCCANEER 320
Built by Bayliner Marine Corp. (USA)
• Designed by William Garden
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1976
Dimensions
Length Overall (LOA):
9.75 m
Length Waterline (LWL):
8.69 m
Beam:
3.10 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
5,670 kg
Ballast:
1,406 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
26.98 m²
Mainsail Area:
16.61 m²
Total Sail Area (calculated):
43.59 m²
Sail Area (reported):
53.51 m²
I (Fore Triangle Height):
12.10 m
J (Fore Triangle Base):
4.46 m
P (Mainsail Hoist):
9.91 m
E (Boom Length):
3.35 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD-33
Engine Power:
33 HP
Fuel Capacity:
174 L
Water Capacity:
227 L
Performance Ratios
Hull Speed:
7.15 knots
SA/Displacement (Calculated):
13.71
SA/Displacement (Reported):
17.17
Ballast/Disp Ratio:
24.80%
Displacement/Length:
241.06
Comfort Ratio:
29.76
Capsize Screening:
1.76
S-Number:
1.94
Notes
BUCCANEER 325 is similar.
