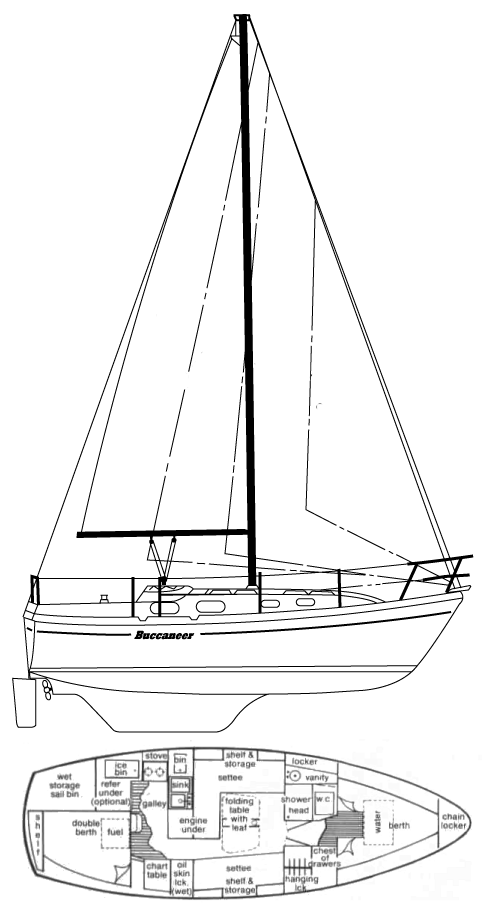

BUCCANEER 305
Built by Bayliner Marine Corp. /US Yachts
• Designed by William Garden
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1977
Dimensions
Length Overall (LOA):
9.14 m
Length Waterline (LWL):
8.00 m
Beam:
3.10 m
Draft (Max):
1.22 m
Headroom:
1.88 m
Max Height:
13.44 m
Weight & Ballast
Displacement:
4,536 kg
Ballast:
1,588 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
26.34 m²
Mainsail Area:
16.61 m²
Total Sail Area (calculated):
42.95 m²
Sail Area (reported):
50.45 m²
I (Fore Triangle Height):
12.34 m
J (Fore Triangle Base):
4.27 m
P (Mainsail Hoist):
9.91 m
E (Boom Length):
3.35 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD11
Engine Power:
23 HP
Fuel Capacity:
159 L
Water Capacity:
136 L
Performance Ratios
Hull Speed:
6.87 knots
SA/Displacement (Calculated):
15.67
SA/Displacement (Reported):
18.78
Ballast/Disp Ratio:
35.00%
Displacement/Length:
246.81
Comfort Ratio:
25.70
Capsize Screening:
1.89
S-Number:
2.11
Notes
Based on William Garden design #611 (1975-BUCCANEER 300).
