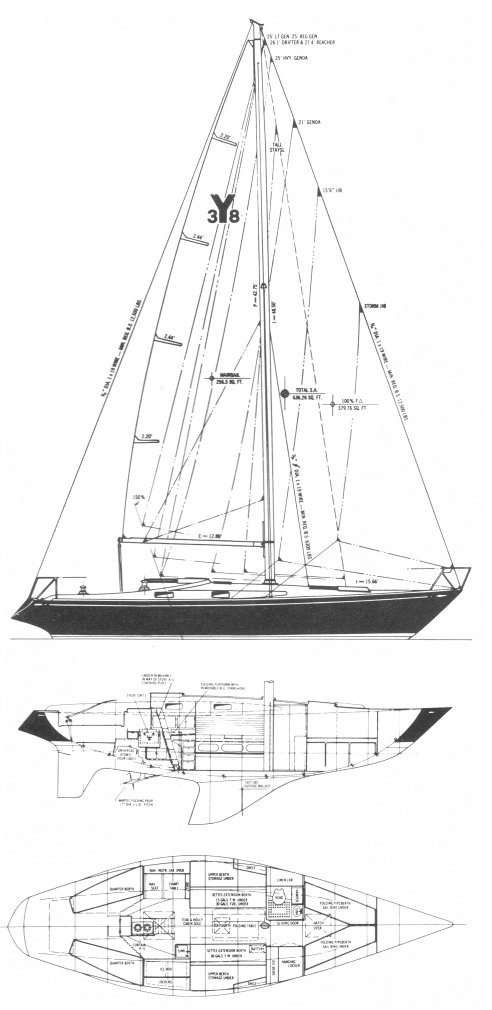

YANKEE 38
Built by Yankee Yachts Inc. (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1972
Last Built:
1975
Number Built:
30
Dimensions
Length Overall (LOA):
11.63 m
Length Waterline (LWL):
8.76 m
Beam:
3.58 m
Draft (Max):
1.91 m
Weight & Ballast
Displacement:
7,257 kg
Ballast:
3,323 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
35.37 m²
Mainsail Area:
23.86 m²
Total Sail Area (calculated):
59.23 m²
Sail Area (reported):
59.27 m²
I (Fore Triangle Height):
14.78 m
J (Fore Triangle Base):
4.79 m
P (Mainsail Hoist):
13.05 m
E (Boom Length):
3.66 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
491
Engine Power:
30 HP
Fuel Capacity:
114 L
Water Capacity:
227 L
Performance Ratios
Hull Speed:
7.18 knots
SA/Displacement (Calculated):
15.80
SA/Displacement (Reported):
16.14
Ballast/Disp Ratio:
45.79%
Displacement/Length:
300.58
Comfort Ratio:
29.42
Capsize Screening:
1.87
S-Number:
1.67
Notes
S&S #2094-C2. Based on the IOR One Ton racer 'Lightnin'(1971).
