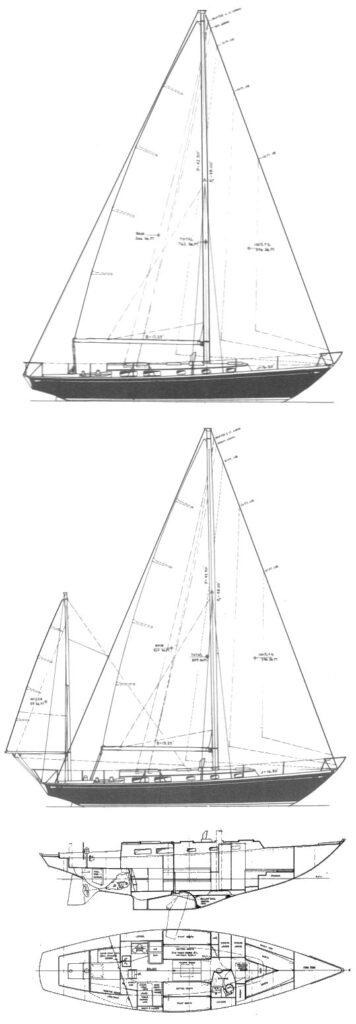

XL-2 42 (ALLIED)
Built by Allied Boat Co. (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG/solid laminate
First Built:
1969
Last Built:
1982
Dimensions
Length Overall (LOA):
12.65 m
Length Waterline (LWL):
8.84 m
Beam:
3.51 m
Draft (Max):
2.54 m
Draft (Min):
1.27 m
Weight & Ballast
Displacement:
7,811 kg
Ballast:
3,221 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
36.79 m²
Mainsail Area:
34.05 m²
Total Sail Area (calculated):
70.84 m²
Sail Area (reported):
70.89 m²
I (Fore Triangle Height):
14.63 m
J (Fore Triangle Base):
5.03 m
P (Mainsail Hoist):
12.95 m
E (Boom Length):
5.26 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Power:
40 HP
Fuel Capacity:
114 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.22 knots
SA/Displacement (Calculated):
17.99
SA/Displacement (Reported):
18.38
Ballast/Disp Ratio:
41.23%
Displacement/Length:
315.20
Comfort Ratio:
31.42
Capsize Screening:
1.78
S-Number:
1.73
Notes
Yawl Rig:
