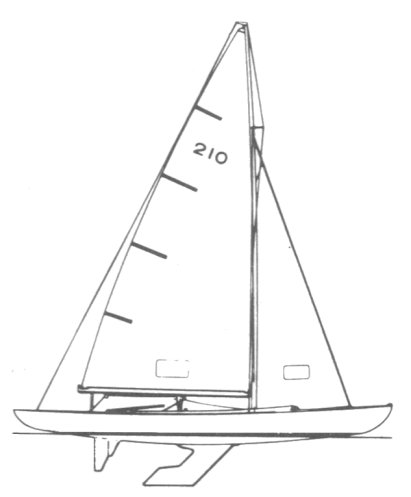

210
Built by Graves Yacht Yard (USA)
• Designed by C. Raymond Hunt
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Fractional Sloop
Construction:
Ply with single chine or FG
First Built:
1946
Number Built:
460
Dimensions
Length Overall (LOA):
9.09 m
Length Waterline (LWL):
6.86 m
Beam:
1.78 m
Draft (Max):
1.17 m
Weight & Ballast
Displacement:
1,043 kg
Ballast:
519 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
28.34 m²
Engine & Systems
Performance Ratios
Hull Speed:
6.36 knots
SA/Displacement (Reported):
28.07
Ballast/Disp Ratio:
49.78%
Displacement/Length:
90.14
Comfort Ratio:
13.73
Capsize Screening:
1.77
Notes
Hunt began racing the prototype in 1940. Further development was delayed by WWII. He resumed development in 1945 and began lining up builders and suppliers. Graves built the first production hull (#2) in 1946.
