BRISTOL 27
Built by Bristol Yachts, Inc. (USA)
• Designed by Carl Alberg
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG (solid laminate)
First Built:
1966
Last Built:
1978
Number Built:
337
Dimensions
Length Overall (LOA):
8.28 m
Length Waterline (LWL):
6.02 m
Beam:
2.44 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
2,994 kg
Ballast:
1,168 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
14.59 m²
Mainsail Area:
14.45 m²
Total Sail Area (calculated):
29.04 m²
Sail Area (reported):
29.08 m²
I (Fore Triangle Height):
9.30 m
J (Fore Triangle Base):
3.14 m
P (Mainsail Hoist):
7.77 m
E (Boom Length):
3.72 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
83 L
Water Capacity:
76 L
Performance Ratios
Hull Speed:
5.96 knots
SA/Displacement (Calculated):
13.98
SA/Displacement (Reported):
14.28
Ballast/Disp Ratio:
39.02%
Displacement/Length:
382.47
Comfort Ratio:
29.08
Capsize Screening:
1.71
S-Number:
1.06
Notes

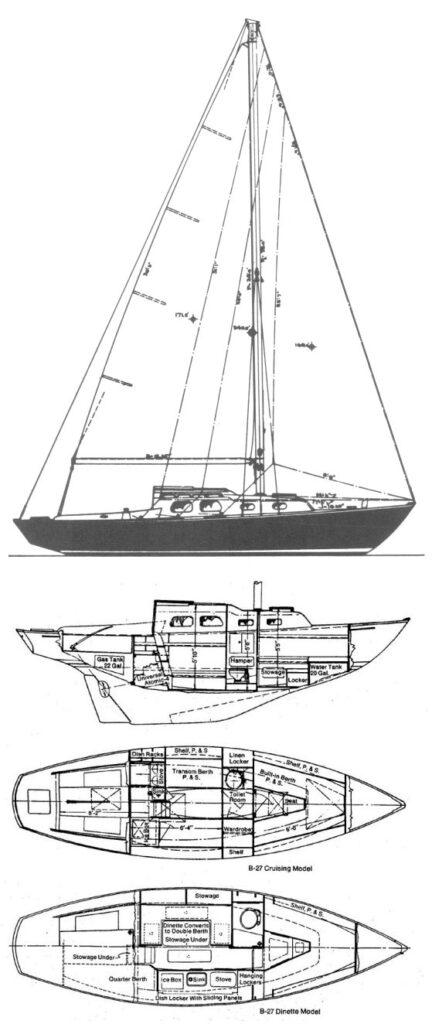

Also available with a taller rig. Besides the two layouts shown here, a WEEKENDER model was also available with a shorter coach roof and longer cockpit.
