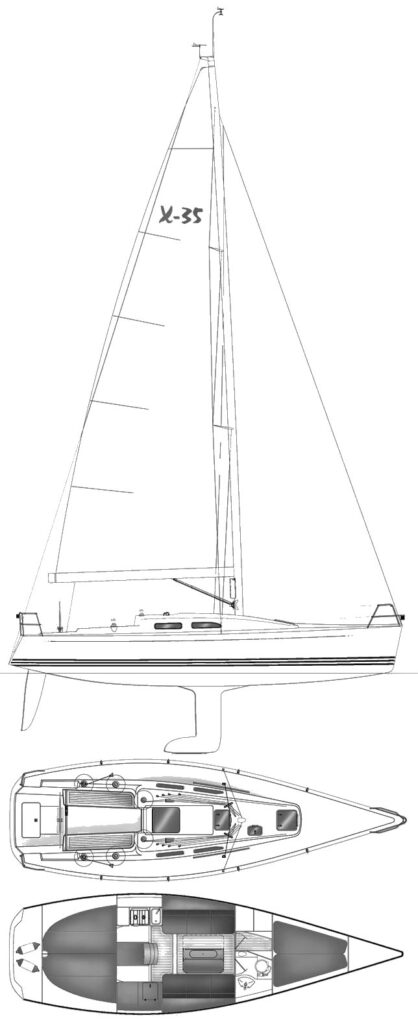

X-35
Built by X-Yachts (DEN)
• Designed by Niels Jeppesen
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2005
Dimensions
Length Overall (LOA):
10.61 m
Length Waterline (LWL):
9.12 m
Beam:
3.27 m
Draft (Max):
2.15 m
Weight & Ballast
Displacement:
4,300 kg
Ballast:
1,700 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
30.34 m²
Mainsail Area:
34.92 m²
Total Sail Area (calculated):
65.26 m²
Sail Area (reported):
65.22 m²
I (Fore Triangle Height):
14.50 m
J (Fore Triangle Base):
4.18 m
P (Mainsail Hoist):
14.25 m
E (Boom Length):
4.90 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
20 HP
Performance Ratios
Hull Speed:
7.33 knots
SA/Displacement (Calculated):
24.68
SA/Displacement (Reported):
25.16
Ballast/Disp Ratio:
39.54%
Displacement/Length:
158.01
Comfort Ratio:
19.79
Capsize Screening:
2.03
S-Number:
4.28
