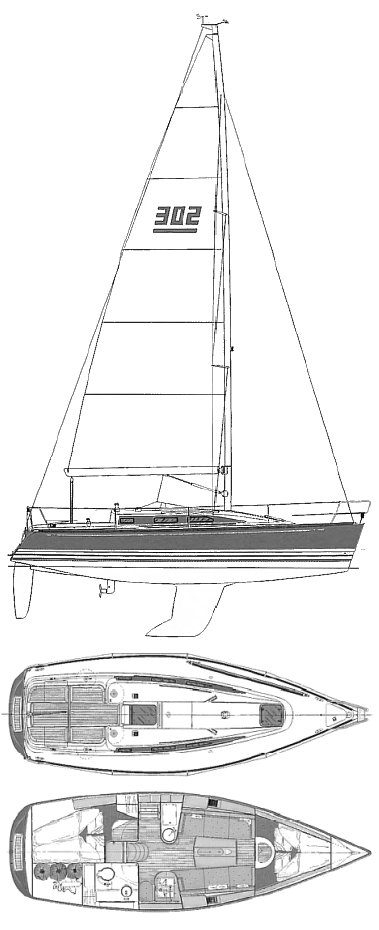

X-302
Built by X Yachts (DEN)
• Designed by Niels Jeppesen
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1994
Last Built:
2004
Number Built:
117
Dimensions
Length Overall (LOA):
9.08 m
Length Waterline (LWL):
8.05 m
Beam:
2.99 m
Draft (Max):
1.71 m
Weight & Ballast
Displacement:
3,597 kg
Ballast:
1,498 kg
Sail Plan
Foresail Area:
17.75 m²
Mainsail Area:
22.75 m²
Total Sail Area (calculated):
40.50 m²
Sail Area (reported):
40.51 m²
I (Fore Triangle Height):
11.31 m
J (Fore Triangle Base):
3.14 m
P (Mainsail Hoist):
11.31 m
E (Boom Length):
4.02 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
14 HP
Performance Ratios
Hull Speed:
6.89 knots
SA/Displacement (Calculated):
17.25
SA/Displacement (Reported):
17.60
Ballast/Disp Ratio:
41.66%
Displacement/Length:
191.94
Comfort Ratio:
21.36
Capsize Screening:
1.97
S-Number:
2.88
