WYLIE WABBIT 24
Built by North Coast Yachts
• Designed by Thomas Wylie
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG w/foam cored hull & deck
First Built:
1982
Number Built:
63
Dimensions
Length Overall (LOA):
7.24 m
Length Waterline (LWL):
6.10 m
Beam:
1.70 m
Draft (Max):
1.07 m
Weight & Ballast
Displacement:
397 kg
Ballast:
200 kg
Ballast Type:
Lead

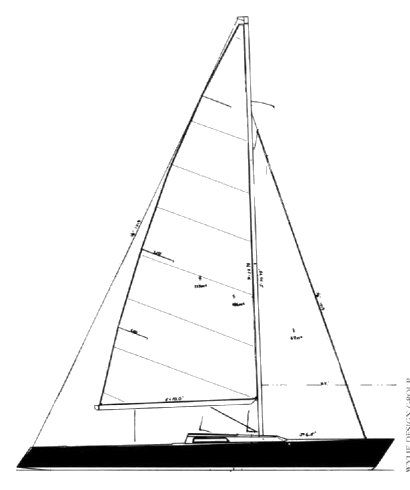

Sail Plan
Foresail Area:
6.19 m²
Mainsail Area:
11.06 m²
Total Sail Area (calculated):
17.25 m²
Sail Area (reported):
17.28 m²
I (Fore Triangle Height):
6.25 m
J (Fore Triangle Base):
1.98 m
P (Mainsail Hoist):
7.25 m
E (Boom Length):
3.05 m
Engine & Systems
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calculated):
31.93
SA/Displacement (Reported):
32.59
Ballast/Disp Ratio:
50.29%
Displacement/Length:
48.83
Comfort Ratio:
6.48
Capsize Screening:
2.34
S-Number:
8.14
