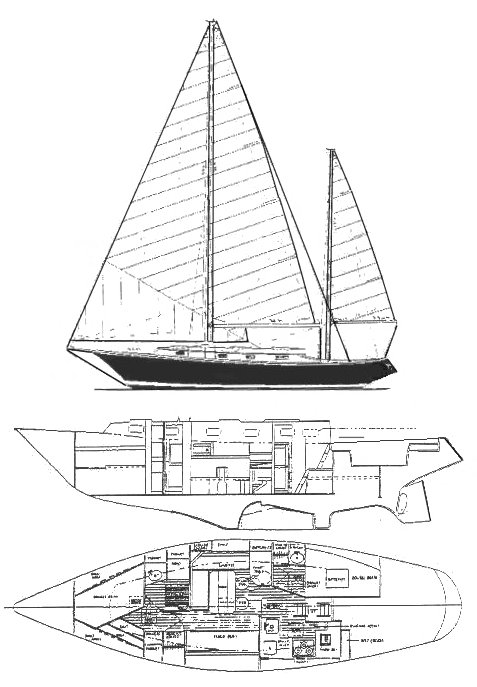

WRIGHT 40 (ALLIED)
Built by Wright Yacht Co./Allied Boat Co. (USA)
• Designed by Arthur Edmunds/Sparkman & Stephens
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1977
Last Built:
1978
Number Built:
5
Dimensions
Length Overall (LOA):
12.27 m
Length Waterline (LWL):
9.08 m
Beam:
3.66 m
Draft (Max):
2.49 m
Draft (Min):
1.22 m
Weight & Ballast
Displacement:
8,618 kg
Ballast:
2,767 kg
Sail Plan
Foresail Area:
36.38 m²
Mainsail Area:
25.91 m²
Total Sail Area (calculated):
62.29 m²
Sail Area (reported):
62.25 m²
I (Fore Triangle Height):
13.41 m
J (Fore Triangle Base):
5.43 m
P (Mainsail Hoist):
11.89 m
E (Boom Length):
4.36 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
40
Engine Power:
37 HP
Fuel Capacity:
492 L
Water Capacity:
681 L
Performance Ratios
Hull Speed:
7.31 knots
SA/Displacement (Calculated):
14.82
SA/Displacement (Reported):
15.11
Ballast/Disp Ratio:
32.11%
Displacement/Length:
321.17
Comfort Ratio:
32.59
Capsize Screening:
1.80
S-Number:
1.46
Notes
The same hull as the ALLIED MISTRESS with an extended stern, reverse transom, and keel-centerboard underbody.
