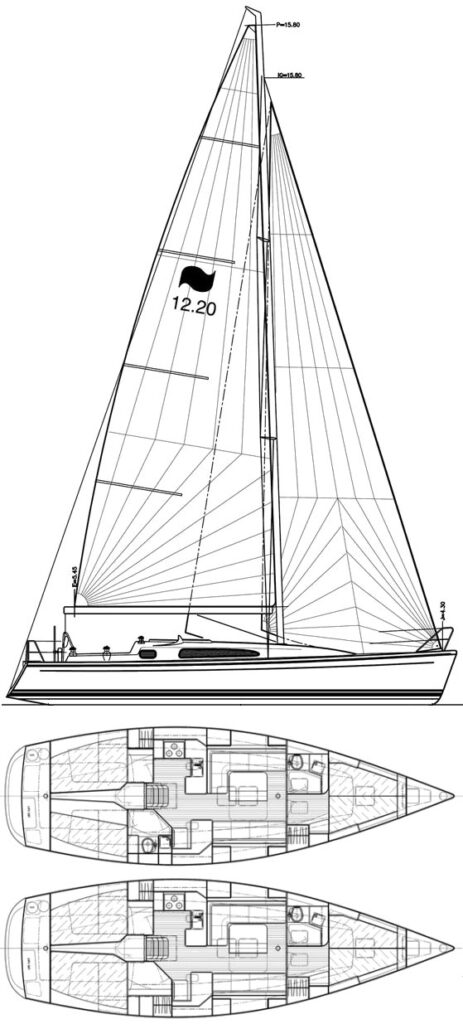

WINNER 12.20
Built by Winner Yachts
• Designed by Cees van Tongeren
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2009
Dimensions
Length Overall (LOA):
12.20 m
Length Waterline (LWL):
10.40 m
Beam:
3.75 m
Draft (Max):
2.15 m
Weight & Ballast
Displacement:
7,400 kg
Ballast:
3,100 kg
Sail Plan
Foresail Area:
33.98 m²
Mainsail Area:
43.06 m²
Total Sail Area (calculated):
77.04 m²
Sail Area (reported):
77.02 m²
I (Fore Triangle Height):
15.80 m
J (Fore Triangle Base):
4.30 m
P (Mainsail Hoist):
15.80 m
E (Boom Length):
5.45 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3JH4E
Fuel Capacity:
151 L
Water Capacity:
348 L
Performance Ratios
Hull Speed:
7.83 knots
SA/Displacement (Calculated):
20.28
SA/Displacement (Reported):
20.70
Ballast/Disp Ratio:
41.89%
Displacement/Length:
183.35
Comfort Ratio:
24.83
Capsize Screening:
1.94
S-Number:
3.35
