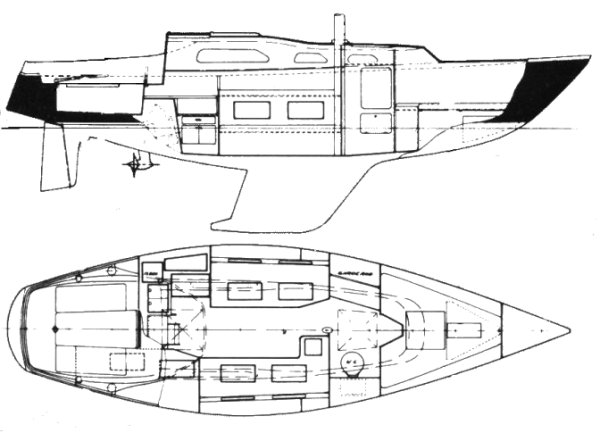

WINGA 29
Built by Winga Marin (SWE)
• Designed by Einar Ohlson
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1975
Last Built:
1983
Number Built:
400
Dimensions
Length Overall (LOA):
8.60 m
Length Waterline (LWL):
6.71 m
Beam:
2.70 m
Draft (Max):
1.65 m
Weight & Ballast
Displacement:
3,175 kg
Ballast:
1,250 kg
Sail Plan
Foresail Area:
20.25 m²
Mainsail Area:
12.20 m²
Total Sail Area (calculated):
32.45 m²
Sail Area (reported):
32.42 m²
I (Fore Triangle Height):
10.98 m
J (Fore Triangle Base):
3.69 m
P (Mainsail Hoist):
9.20 m
E (Boom Length):
2.65 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD6B
Engine Power:
10 HP
Performance Ratios
Hull Speed:
6.29 knots
SA/Displacement (Calculated):
15.02
SA/Displacement (Reported):
15.31
Ballast/Disp Ratio:
39.36%
Displacement/Length:
293.48
Comfort Ratio:
24.79
Capsize Screening:
1.86
S-Number:
1.66
Notes
Began as the OHLSON 29 (1969). Rights purchased by Winga and modified to become WINGA 29.
