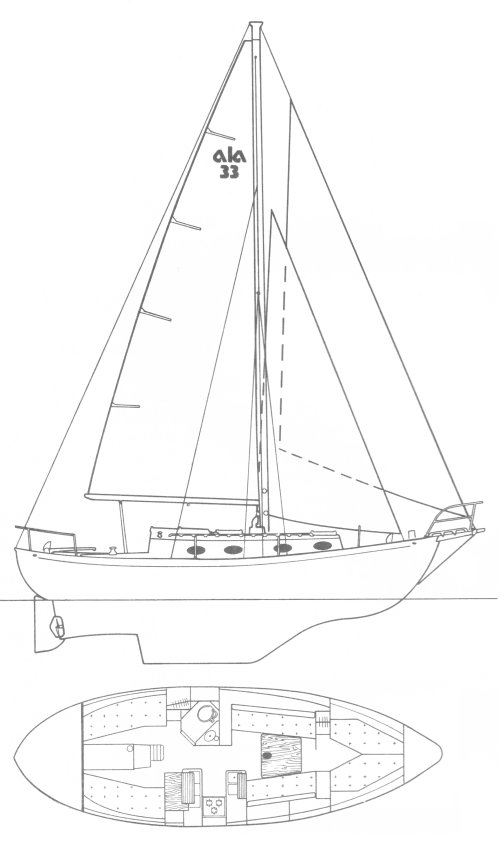

ALAJUELA 33
Built by Alajuela Yacht Corp. (USA)
• Designed by Raymond Richards
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1977
Dimensions
Length Overall (LOA):
10.06 m
Length Waterline (LWL):
8.38 m
Beam:
3.25 m
Draft (Max):
1.45 m
Max Height:
13.89 m
Weight & Ballast
Displacement:
6,123 kg
Ballast:
2,132 kg
Sail Plan
Foresail Area:
31.04 m²
Mainsail Area:
22.40 m²
Total Sail Area (calculated):
53.44 m²
Sail Area (reported):
53.42 m²
I (Fore Triangle Height):
12.80 m
J (Fore Triangle Base):
4.85 m
P (Mainsail Hoist):
11.02 m
E (Boom Length):
4.06 m
Engine & Systems
Engine Make:
Pisces
Engine Type:
Diesel
Engine Power:
27 HP
Fuel Capacity:
189 L
Water Capacity:
284 L
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
15.97
SA/Displacement (Reported):
16.28
Ballast/Disp Ratio:
34.81%
Displacement/Length:
289.79
Comfort Ratio:
30.57
Capsize Screening:
1.80
S-Number:
1.77
