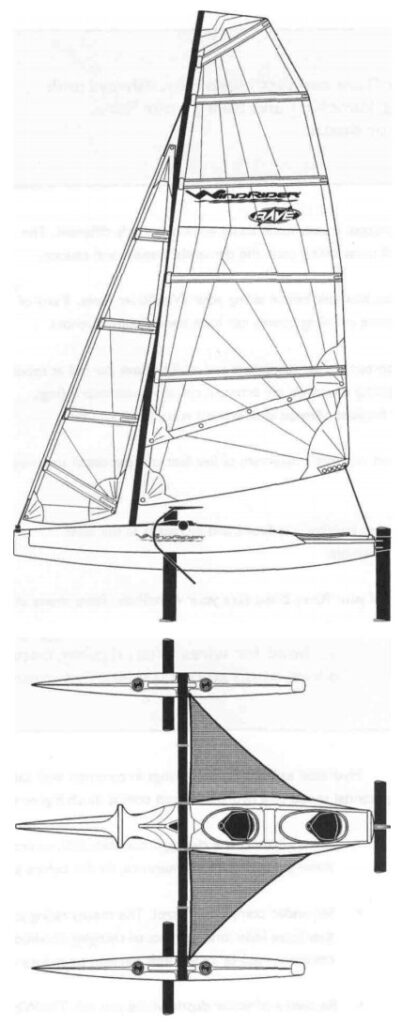

WINDRIDER RAVE (TRI-FOILER)
Built by Windrider Systems (USA)
• Designed by S. Bradfield/T. Haman/M.McGarry
General Information
Hull Type:
Foiling Trimaran
Rigging Type:
Frac. Sloop (Rotating Spar)
Construction:
FG
First Built:
1998
Last Built:
2010
Number Built:
136
Dimensions
Length Overall (LOA):
5.18 m
Beam:
5.18 m
Draft (Max):
1.22 m
Draft (Min):
0.30 m
Max Height:
7.62 m
Weight & Ballast
Displacement:
181 kg
Sail Plan
Sail Area (reported):
18.12 m²
Engine & Systems
Performance Ratios
SA/Displacement (Reported):
57.54
Notes
Beam on trailer: 7.5 ft / 2.3 m
