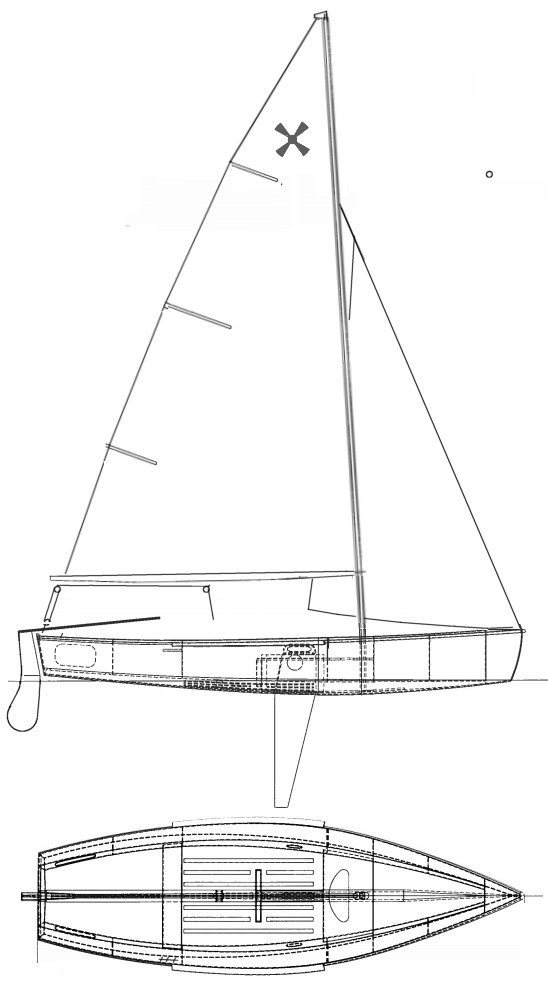

WINDMILL
• Designed by Clark Mills
General Information
Hull Type:
Dbrd. Dinghy
Rigging Type:
Fractional Sloop
Construction:
Wood or FG
First Built:
1953
Number Built:
5700
Dimensions
Length Overall (LOA):
4.72 m
Length Waterline (LWL):
4.42 m
Beam:
1.45 m
Draft (Max):
1.27 m
Draft (Min):
0.15 m
Weight & Ballast
Displacement:
90 kg
Sail Plan
Sail Area (reported):
11.06 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.10 knots
SA/Displacement (Reported):
56.09
Displacement/Length:
28.99
Comfort Ratio:
2.59
Capsize Screening:
3.26
Notes
Originally designed for the home builder using 4 sheets of plywood.
