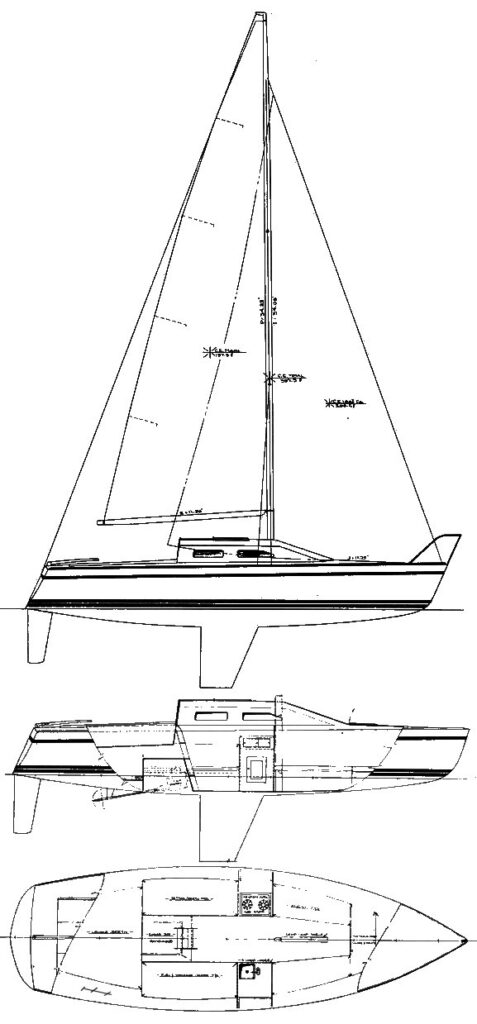

WILDERNESS 30SX
Built by Wilderness Boat Works (USA)
• Designed by Chuck Burns
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG w/Klege-cell core
First Built:
1979
Dimensions
Length Overall (LOA):
9.07 m
Length Waterline (LWL):
8.46 m
Beam:
2.67 m
Draft (Max):
1.68 m
Weight & Ballast
Displacement:
1,905 kg
Ballast:
862 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
18.60 m²
Mainsail Area:
18.34 m²
Total Sail Area (calculated):
36.94 m²
Sail Area (reported):
41.81 m²
I (Fore Triangle Height):
10.39 m
J (Fore Triangle Base):
3.58 m
P (Mainsail Hoist):
10.46 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
BMW
Engine Type:
Diesel
Engine Power:
7 HP
Fuel Capacity:
38 L
Water Capacity:
38 L
Performance Ratios
Hull Speed:
7.06 knots
SA/Displacement (Calculated):
24.04
SA/Displacement (Reported):
27.74
Ballast/Disp Ratio:
45.24%
Displacement/Length:
87.74
Comfort Ratio:
12.73
Capsize Screening:
2.17
S-Number:
5.72
Notes
Inboard engine available as an option.
