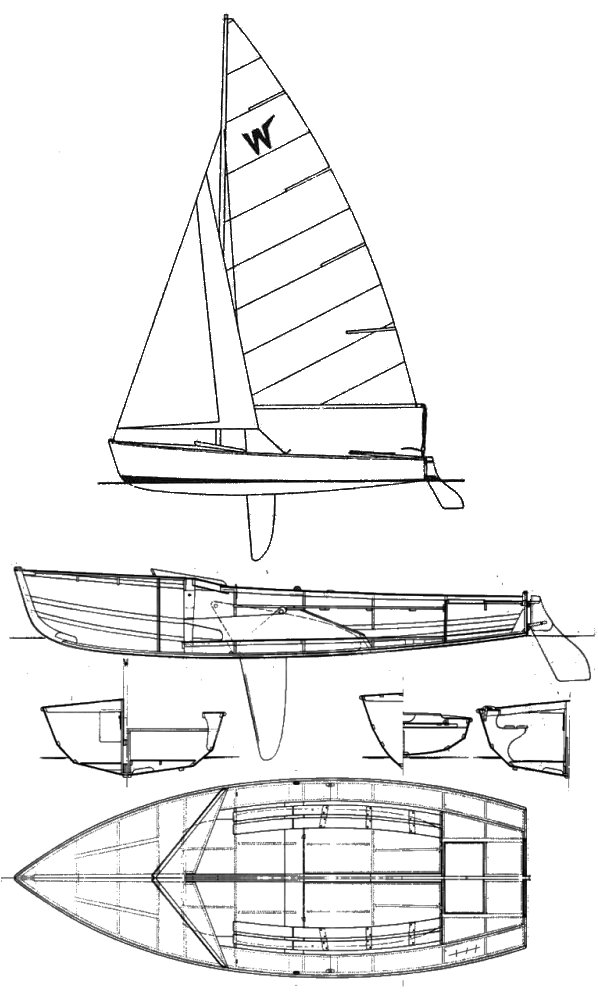

WAYFARER
Built by Small Craft Ltd.(UK)/Abbott Boats (CAN)
• Designed by Ian Proctor
General Information
Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
Construction:
Ply (multi-chine)/FG
First Built:
1957
Number Built:
8400
Dimensions
Length Overall (LOA):
4.82 m
Length Waterline (LWL):
4.52 m
Beam:
1.85 m
Draft (Max):
1.17 m
Draft (Min):
0.20 m
Weight & Ballast
Displacement:
169 kg
Sail Plan
Sail Area (reported):
13.10 m²
Engine & Systems
Performance Ratios
Hull Speed:
5.16 knots
SA/Displacement (Reported):
43.67
Displacement/Length:
50.92
Comfort Ratio:
3.43
Capsize Screening:
3.38
Notes
The original plywood boat was available also, in kit form. (Small Craft Ltd.)
