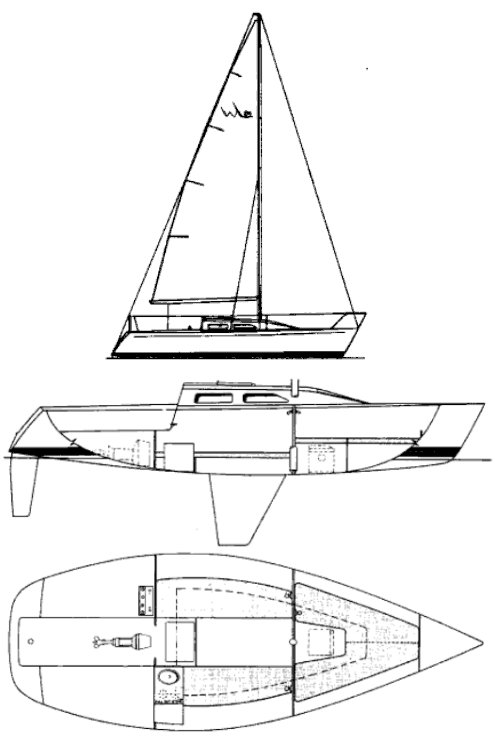

WAVELENGTH 24
Built by W. D. Schock Corp.(USA)
• Designed by Paul Lindenberg
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1982
Last Built:
1990
Number Built:
87
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
6.20 m
Beam:
2.74 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
1,134 kg
Ballast:
499 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
13.79 m²
Mainsail Area:
13.01 m²
Total Sail Area (calculated):
26.80 m²
Sail Area (reported):
26.76 m²
I (Fore Triangle Height):
9.53 m
J (Fore Triangle Base):
2.90 m
P (Mainsail Hoist):
8.33 m
E (Boom Length):
3.12 m
Engine & Systems
Performance Ratios
Hull Speed:
6.04 knots
SA/Displacement (Calculated):
24.64
SA/Displacement (Reported):
25.08
Ballast/Disp Ratio:
44.00%
Displacement/Length:
132.83
Comfort Ratio:
9.66
Capsize Screening:
2.66
S-Number:
4.77
Notes
In 2005, the WAVELENGTH 24 was brought back into production.
