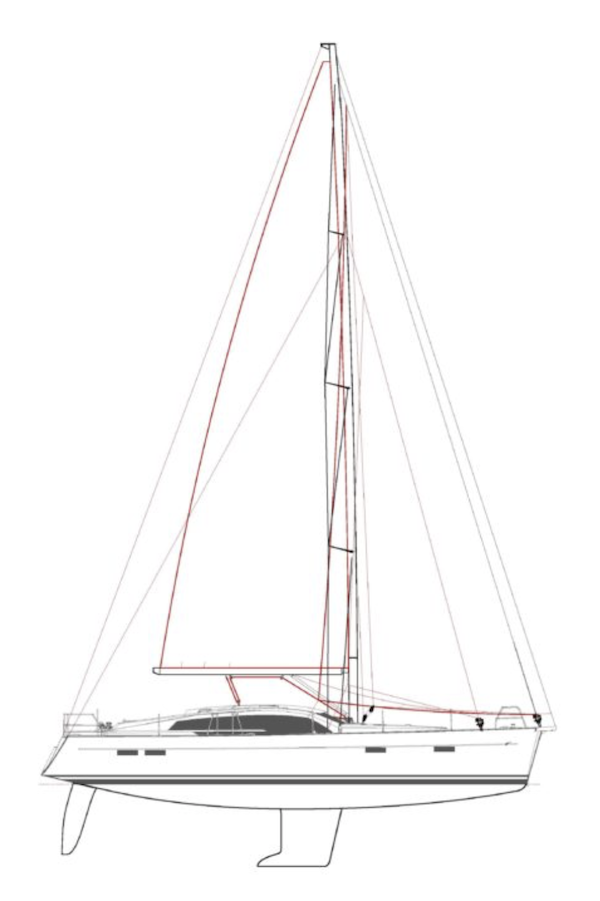

WAUQUIEZ PILOT SALOON 48-2
Built by Wauquiez Boats
• Designed by Berret-Racoupeau
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG (vacuum infusion resin) w/ balsa sandwich
First Built:
2015
Dimensions
Length Overall (LOA):
14.77 m
Length Waterline (LWL):
12.75 m
Beam:
4.61 m
Draft (Max):
2.10 m
Headroom:
2.00 m
Max Height:
19.60 m
Weight & Ballast
Displacement:
14,000 kg
Ballast:
3,900 kg
Ballast Type:
Cast Iron
Sail Plan
Foresail Area:
48.16 m²
Mainsail Area:
46.85 m²
Total Sail Area (calculated):
95.01 m²
Sail Area (reported):
102.00 m²
I (Fore Triangle Height):
18.45 m
J (Fore Triangle Base):
5.22 m
P (Mainsail Hoist):
17.35 m
E (Boom Length):
5.40 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
110 HP
Fuel Capacity:
650 L
Water Capacity:
615 L
Performance Ratios
Hull Speed:
8.67 knots
SA/Displacement (Calculated):
16.36
SA/Displacement (Reported):
17.93
Ballast/Disp Ratio:
27.86%
Displacement/Length:
188.26
Comfort Ratio:
29.25
Capsize Screening:
1.93
S-Number:
2.81
Notes
Shoal keel (lead): draft - 1.8m / 5.9ft; ballast - 4,080kg / 8,995 lbs.
