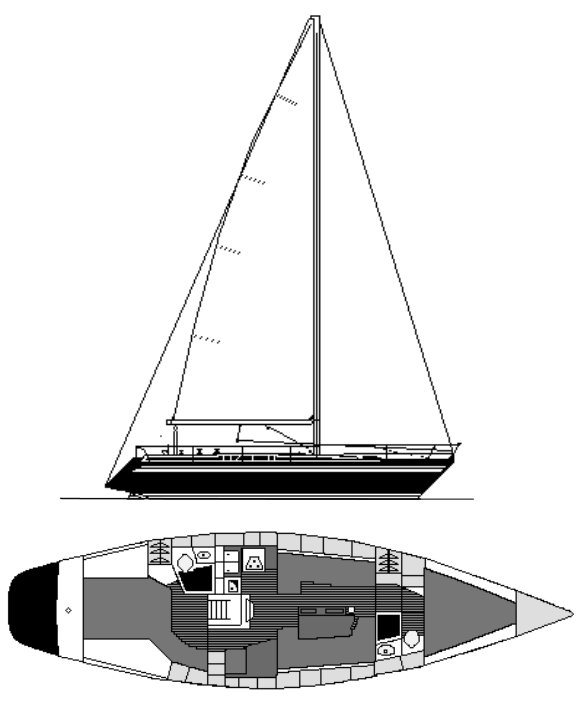

WASA 420
Built by Wasa (SWE)
• Designed by Leif Ängermark
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1987
Dimensions
Length Overall (LOA):
12.85 m
Length Waterline (LWL):
10.24 m
Beam:
3.60 m
Draft (Max):
2.20 m
Weight & Ballast
Displacement:
8,000 kg
Ballast:
3,300 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
40.51 m²
Mainsail Area:
38.05 m²
Total Sail Area (calculated):
78.56 m²
Sail Area (reported):
78.60 m²
I (Fore Triangle Height):
16.21 m
J (Fore Triangle Base):
5.00 m
P (Mainsail Hoist):
14.50 m
E (Boom Length):
5.25 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
2040 Turbo
Engine Power:
40 HP
Fuel Capacity:
121 L
Water Capacity:
121 L
Performance Ratios
Hull Speed:
7.77 knots
SA/Displacement (Calculated):
19.64
SA/Displacement (Reported):
20.05
Ballast/Disp Ratio:
41.25%
Displacement/Length:
207.57
Comfort Ratio:
28.13
Capsize Screening:
1.82
S-Number:
2.95
