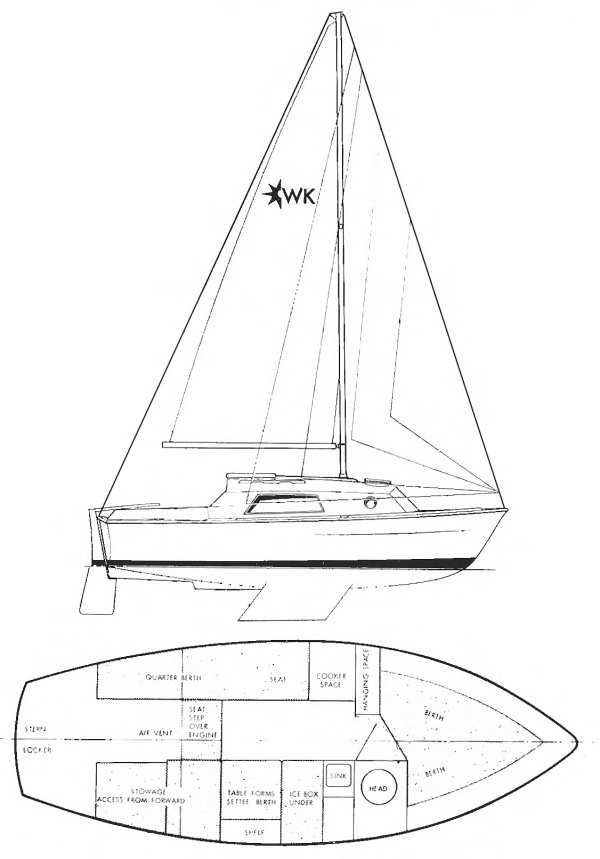

WARWICK 21 (WESTERLY)
Built by Westerly Marine Ltd. (UK)
• Designed by Laurent Giles
General Information
Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1970
Last Built:
1976
Number Built:
207
Dimensions
Length Overall (LOA):
6.55 m
Length Waterline (LWL):
5.72 m
Beam:
2.36 m
Draft (Max):
0.84 m
Weight & Ballast
Displacement:
1,676 kg
Ballast:
762 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
10.81 m²
Mainsail Area:
8.41 m²
Total Sail Area (calculated):
19.22 m²
Sail Area (reported):
19.23 m²
I (Fore Triangle Height):
8.18 m
J (Fore Triangle Base):
2.64 m
P (Mainsail Hoist):
6.55 m
E (Boom Length):
2.57 m
Engine & Systems
Engine Make:
Lister
Engine Type:
Diesel
Fuel Capacity:
38 L
Water Capacity:
19 L
Performance Ratios
Hull Speed:
5.80 knots
SA/Displacement (Calculated):
13.62
SA/Displacement (Reported):
13.89
Ballast/Disp Ratio:
45.47%
Displacement/Length:
250.24
Comfort Ratio:
19.06
Capsize Screening:
2.01
S-Number:
1.86
Notes
Diesel inboard was an option.
