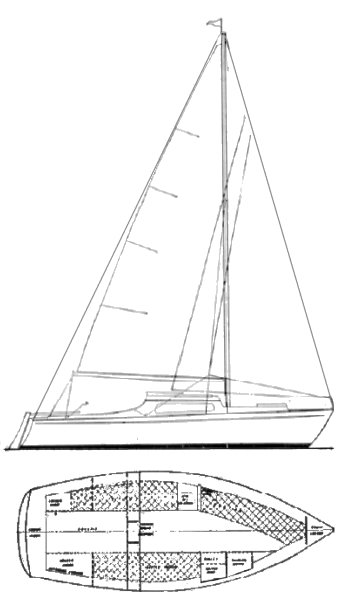

ALACRITY 19
Built by Russell Marine Ltd. /Hurley Marine Ltd.
• Designed by Peter Stevenson
General Information
Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
Construction:
Wood/FG
First Built:
1960
Dimensions
Length Overall (LOA):
5.64 m
Length Waterline (LWL):
5.18 m
Beam:
2.11 m
Draft (Max):
0.55 m
Weight & Ballast
Displacement:
680 kg
Ballast:
218 kg
Sail Plan
Foresail Area:
6.62 m²
Mainsail Area:
8.08 m²
Total Sail Area (calculated):
14.70 m²
Sail Area (reported):
14.68 m²
I (Fore Triangle Height):
7.01 m
J (Fore Triangle Base):
1.89 m
P (Mainsail Hoist):
6.10 m
E (Boom Length):
2.65 m
Engine & Systems
Performance Ratios
Hull Speed:
5.52 knots
SA/Displacement (Calculated):
19.02
SA/Displacement (Reported):
19.33
Ballast/Disp Ratio:
32.00%
Displacement/Length:
136.30
Comfort Ratio:
10.09
Capsize Screening:
2.42
S-Number:
3.93
Notes
The ALACRITY 18 was originally designed for and built of molded plywood. When it was adapted to fiberglass it became more than a foot longer. There are several versions: the Mk1, MkII, and the Weekender.
