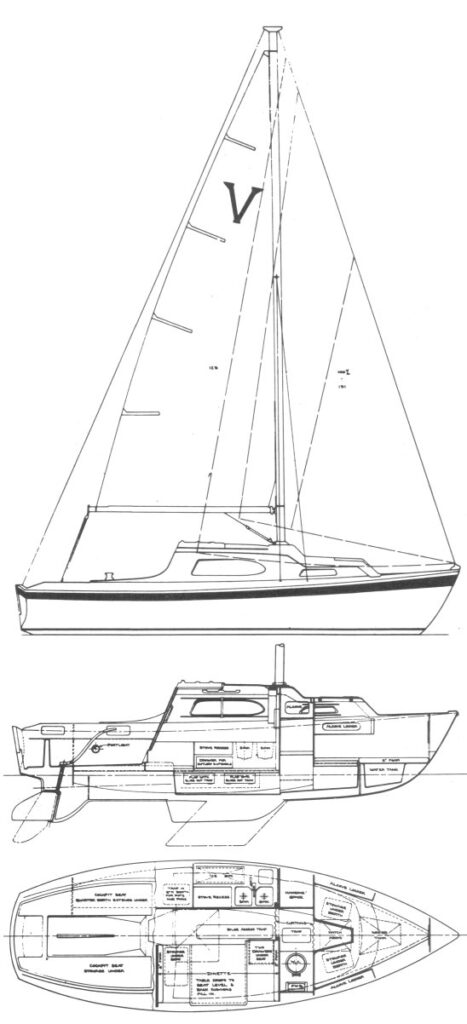

VIVACITY 24
Built by Russel Marine Ltd.
• Designed by Alan Hill
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1969
Dimensions
Length Overall (LOA):
7.16 m
Length Waterline (LWL):
6.32 m
Beam:
2.44 m
Draft (Max):
1.12 m
Weight & Ballast
Displacement:
1,905 kg
Ballast:
794 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
11.09 m²
Mainsail Area:
9.80 m²
Total Sail Area (calculated):
20.89 m²
Sail Area (reported):
23.69 m²
I (Fore Triangle Height):
7.32 m
J (Fore Triangle Base):
3.03 m
P (Mainsail Hoist):
6.40 m
E (Boom Length):
3.06 m
Engine & Systems
Water Capacity:
76 L
Performance Ratios
Hull Speed:
6.10 knots
SA/Displacement (Calculated):
13.60
SA/Displacement (Reported):
15.72
Ballast/Disp Ratio:
41.67%
Displacement/Length:
209.87
Comfort Ratio:
18.85
Capsize Screening:
1.99
S-Number:
2.21
Notes
A twin keel version was also available. Draft: 2.5'.
