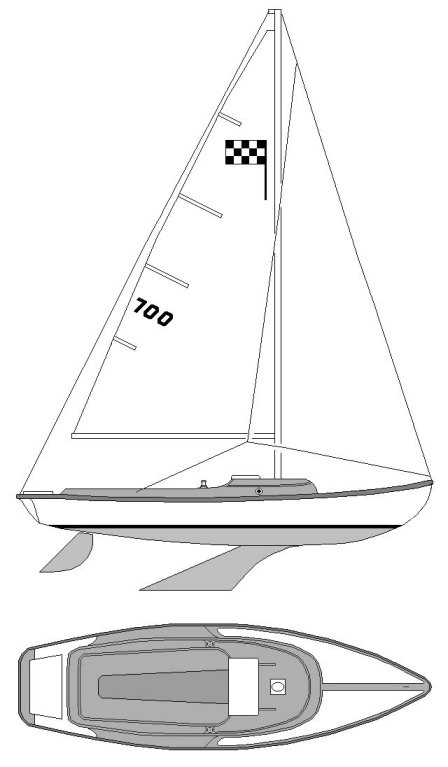

VICTORY 21
Built by Henry McCune/Wesco Marine/Coronado Yachts
• Designed by Ted Carpentier
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1959
Last Built:
1980
Number Built:
690
Dimensions
Length Overall (LOA):
6.40 m
Length Waterline (LWL):
4.57 m
Beam:
1.91 m
Draft (Max):
0.91 m
Weight & Ballast
Displacement:
612 kg
Ballast:
227 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
8.27 m²
Mainsail Area:
9.35 m²
Total Sail Area (calculated):
17.62 m²
Sail Area (reported):
17.19 m²
I (Fore Triangle Height):
7.44 m
J (Fore Triangle Base):
2.23 m
P (Mainsail Hoist):
6.32 m
E (Boom Length):
2.96 m
Engine & Systems
Performance Ratios
Hull Speed:
5.19 knots
SA/Displacement (Calculated):
24.44
SA/Displacement (Reported):
24.28
Ballast/Disp Ratio:
37.04%
Displacement/Length:
178.57
Comfort Ratio:
10.80
Capsize Screening:
2.26
S-Number:
3.88
Notes
The VICTORY 21 was first manufactured by Henry R. McCune (later the builder of the YORKTOWN sailboats) as a one-design class boat.
