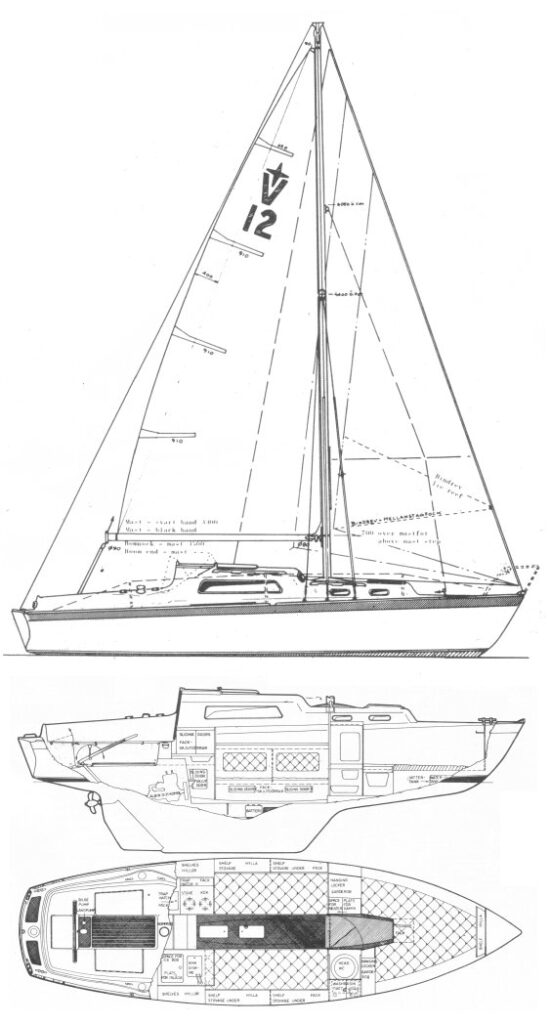

VEGA 27 (ALBIN)
Built by Albin Marine AB (SWE)
• Designed by Per Brohall
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1965
Last Built:
1979
Number Built:
3450
Dimensions
Length Overall (LOA):
8.25 m
Length Waterline (LWL):
7.01 m
Beam:
2.46 m
Draft (Max):
1.12 m
Weight & Ballast
Displacement:
2,300 kg
Ballast:
915 kg
Sail Plan
Foresail Area:
14.55 m²
Mainsail Area:
13.04 m²
Total Sail Area (calculated):
27.59 m²
Sail Area (reported):
27.50 m²
I (Fore Triangle Height):
9.39 m
J (Fore Triangle Base):
3.10 m
P (Mainsail Hoist):
7.90 m
E (Boom Length):
3.30 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD6A
Engine Power:
13 HP
Fuel Capacity:
34 L
Water Capacity:
64 L
Performance Ratios
Hull Speed:
6.43 knots
SA/Displacement (Calculated):
15.83
SA/Displacement (Reported):
16.09
Ballast/Disp Ratio:
39.78%
Displacement/Length:
186.03
Comfort Ratio:
20.00
Capsize Screening:
1.88
S-Number:
2.77
Notes
The VEGA is probably the most popular production sailing yacht(at anything close to this size) built in Scandinavia.
