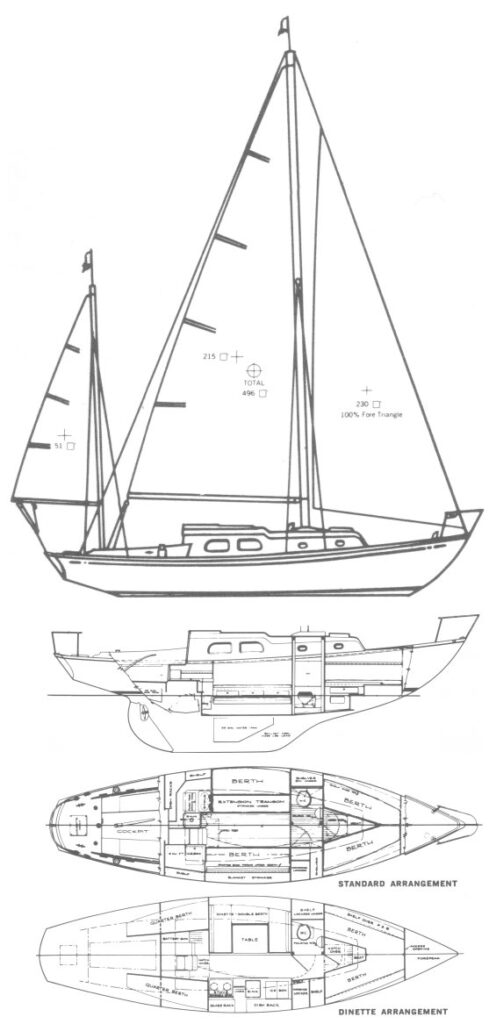

VANGUARD 33 (PEARSON)
Built by Pearson Yachts (USA)
• Designed by Philip Rhodes
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1963
Last Built:
1967
Number Built:
400
Dimensions
Length Overall (LOA):
9.93 m
Length Waterline (LWL):
6.81 m
Beam:
2.82 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
4,672 kg
Ballast:
1,928 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
21.34 m²
Mainsail Area:
22.27 m²
Total Sail Area (calculated):
43.61 m²
Sail Area (reported):
43.66 m²
I (Fore Triangle Height):
11.43 m
J (Fore Triangle Base):
3.73 m
P (Mainsail Hoist):
9.91 m
E (Boom Length):
4.50 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Fuel Capacity:
76 L
Water Capacity:
159 L
Performance Ratios
Hull Speed:
6.33 knots
SA/Displacement (Calculated):
15.60
SA/Displacement (Reported):
15.94
Ballast/Disp Ratio:
41.26%
Displacement/Length:
412.97
Comfort Ratio:
32.36
Capsize Screening:
1.70
S-Number:
1.01
Notes
(P. Rhodes design #c749)
