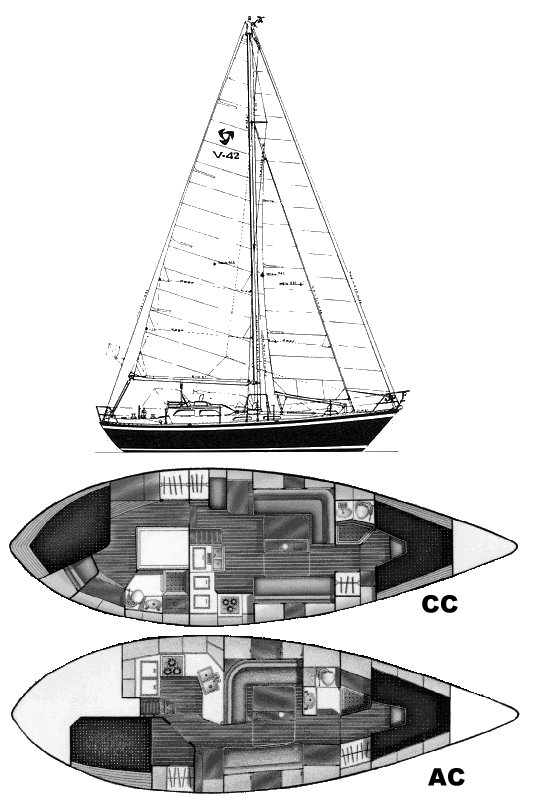

VANCOUVER 42
Built by Tayana
• Designed by Robert Harris
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1982
Dimensions
Length Overall (LOA):
12.73 m
Length Waterline (LWL):
10.06 m
Beam:
3.81 m
Draft (Max):
1.78 m
Max Height:
18.54 m
Weight & Ballast
Displacement:
13,221 kg
Ballast:
5,352 kg
Ballast Type:
Cast iron
Sail Plan
Foresail Area:
46.19 m²
Mainsail Area:
37.78 m²
Total Sail Area (calculated):
83.97 m²
Sail Area (reported):
87.51 m²
I (Fore Triangle Height):
16.76 m
J (Fore Triangle Base):
5.51 m
P (Mainsail Hoist):
14.84 m
E (Boom Length):
5.09 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
40 HP
Fuel Capacity:
454 L
Water Capacity:
568 L
Performance Ratios
Hull Speed:
7.70 knots
SA/Displacement (Calculated):
15.02
SA/Displacement (Reported):
15.98
Ballast/Disp Ratio:
40.48%
Displacement/Length:
362.08
Comfort Ratio:
43.76
Capsize Screening:
1.63
S-Number:
1.23
Notes
Also known an the TAYANA 42.
