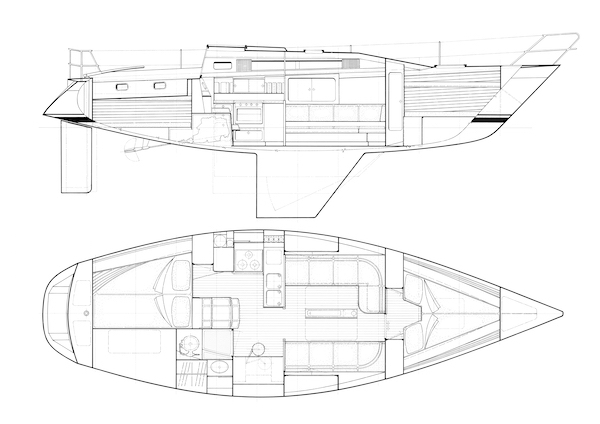

VAN DE STADT 34
Built by Various
• Designed by E.G. van de Stadt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
Aluminum
First Built:
1984
Dimensions
Length Overall (LOA):
10.25 m
Length Waterline (LWL):
8.00 m
Beam:
3.30 m
Draft (Max):
1.80 m
Weight & Ballast
Displacement:
4,500 kg
Ballast:
2,000 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
66.00 m²
Engine & Systems
Engine Type:
Diesel
Fuel Capacity:
60 L
Water Capacity:
150 L
Performance Ratios
Hull Speed:
6.87 knots
SA/Displacement (Reported):
24.70
Ballast/Disp Ratio:
44.44%
Displacement/Length:
244.86
Comfort Ratio:
22.56
Capsize Screening:
2.02
Notes
Design # 391. Stock plans available from www.stadtdesign.com.
