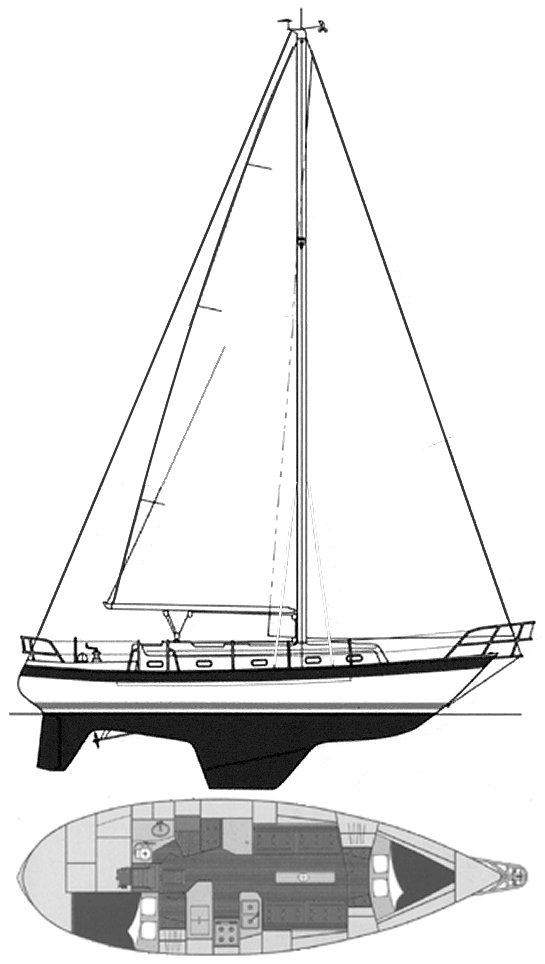

VALIANT 39
Built by Valiant Yachts (USA)
• Designed by Robert Perry
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1995
Last Built:
2004
Dimensions
Length Overall (LOA):
11.99 m
Length Waterline (LWL):
9.75 m
Beam:
3.51 m
Draft (Max):
1.78 m
Max Height:
16.59 m
Weight & Ballast
Displacement:
8,391 kg
Ballast:
3,175 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
38.01 m²
Mainsail Area:
30.31 m²
Total Sail Area (calculated):
68.32 m²
Sail Area (reported):
68.28 m²
I (Fore Triangle Height):
14.94 m
J (Fore Triangle Base):
5.09 m
P (Mainsail Hoist):
13.72 m
E (Boom Length):
4.42 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
358
Engine Power:
35 HP
Fuel Capacity:
178 L
Water Capacity:
485 L
Performance Ratios
Hull Speed:
7.58 knots
SA/Displacement (Calculated):
16.55
SA/Displacement (Reported):
16.88
Ballast/Disp Ratio:
37.84%
Displacement/Length:
252.04
Comfort Ratio:
32.32
Capsize Screening:
1.74
S-Number:
2.14
Notes
Based on the earlier VALIANT/ESPRIT 37 but with new deck, coach roof and bowsprit added.
