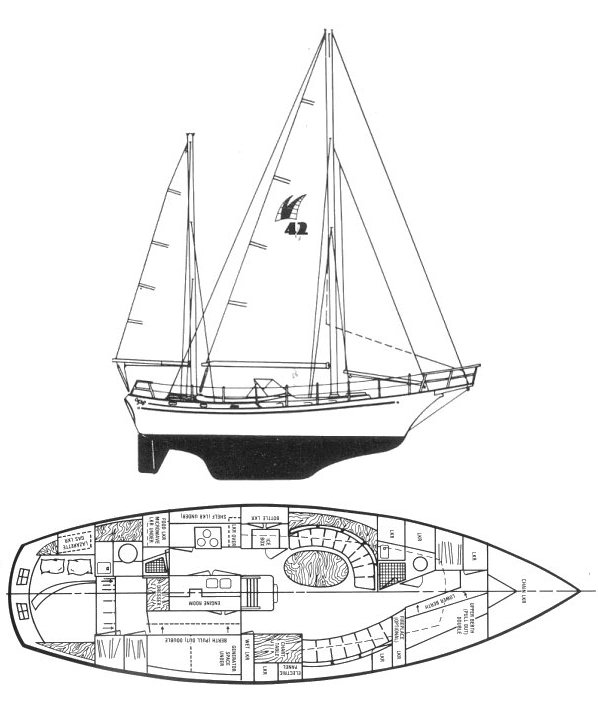

VAGABOND 42
Built by Vagabond/Blue Water Yacht Builders (TAIWAN)
• Designed by George H. Stadel III
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Staysail Ketch
Construction:
FG
First Built:
1978
Last Built:
1990
Dimensions
Length Overall (LOA):
12.80 m
Length Waterline (LWL):
10.36 m
Beam:
3.91 m
Draft (Max):
1.68 m
Max Height:
17.37 m
Weight & Ballast
Displacement:
14,515 kg
Ballast:
5,443 kg
Sail Plan
Foresail Area:
43.48 m²
Mainsail Area:
27.80 m²
Total Sail Area (calculated):
71.28 m²
Sail Area (reported):
80.73 m²
I (Fore Triangle Height):
14.63 m
J (Fore Triangle Base):
5.94 m
P (Mainsail Hoist):
12.80 m
E (Boom Length):
4.34 m
Engine & Systems
Engine Make:
Ford Lehman
Engine Type:
Diesel
Engine Power:
90 HP
Fuel Capacity:
416 L
Water Capacity:
530 L
Performance Ratios
Hull Speed:
7.81 knots
SA/Displacement (Calculated):
11.98
SA/Displacement (Reported):
13.85
Ballast/Disp Ratio:
37.50%
Displacement/Length:
363.47
Comfort Ratio:
45.41
Capsize Screening:
1.62
S-Number:
1.01
Notes
Also called WESTWIND 42.
