US 25
Built by US Yachts - Bayliner (USA)
• Designed by Gary Mull
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1981
Last Built:
1982
Dimensions
Length Overall (LOA):
7.62 m
Length Waterline (LWL):
6.53 m
Beam:
2.44 m
Draft (Max):
1.40 m
Headroom:
1.68 m
Max Height:
10.29 m
Weight & Ballast
Displacement:
1,701 kg
Ballast:
567 kg

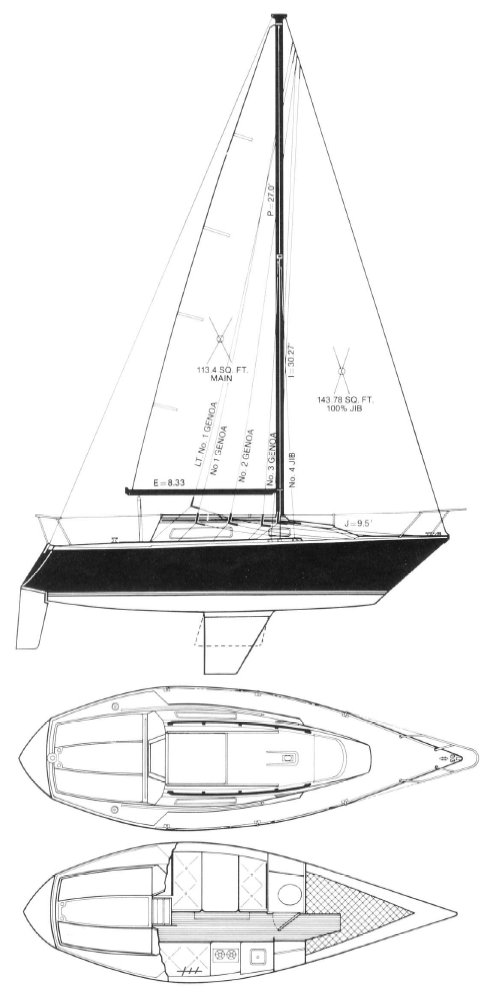

Sail Plan
Foresail Area:
13.36 m²
Mainsail Area:
10.45 m²
Total Sail Area (calculated):
23.81 m²
Sail Area (reported):
23.88 m²
I (Fore Triangle Height):
9.23 m
J (Fore Triangle Base):
2.90 m
P (Mainsail Hoist):
8.23 m
E (Boom Length):
2.54 m
Engine & Systems
Fuel Capacity:
45 L
Performance Ratios
Hull Speed:
6.20 knots
SA/Displacement (Calculated):
16.71
SA/Displacement (Reported):
17.08
Ballast/Disp Ratio:
33.33%
Displacement/Length:
170.34
Comfort Ratio:
16.14
Capsize Screening:
2.06
S-Number:
3.09
Notes
Shoal draft version: 2.67'/.81m. A keel/cb version was also available.
