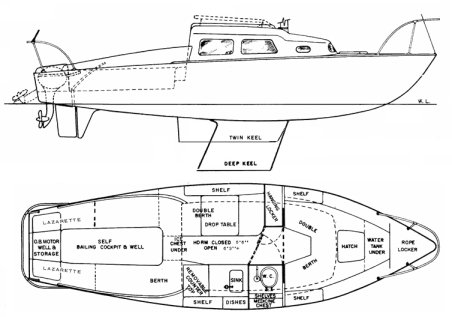

TYLERCRAFT 24
Built by Tylercraft Inc. (USA)
• Designed by Ted Tyler
General Information
Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1961
Dimensions
Length Overall (LOA):
7.32 m
Length Waterline (LWL):
6.10 m
Beam:
2.26 m
Draft (Max):
0.61 m
Weight & Ballast
Displacement:
1,814 kg
Ballast:
658 kg
Ballast Type:
Iron
Sail Plan
Sail Area (reported):
22.58 m²
Engine & Systems
Water Capacity:
76 L
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Reported):
15.47
Ballast/Disp Ratio:
36.25%
Displacement/Length:
223.21
Comfort Ratio:
20.19
Capsize Screening:
1.87
Notes
This must be the most popular Tylercraft model since they show up on the used boat market far more often than any other. Twin and fin keel versions were available.
