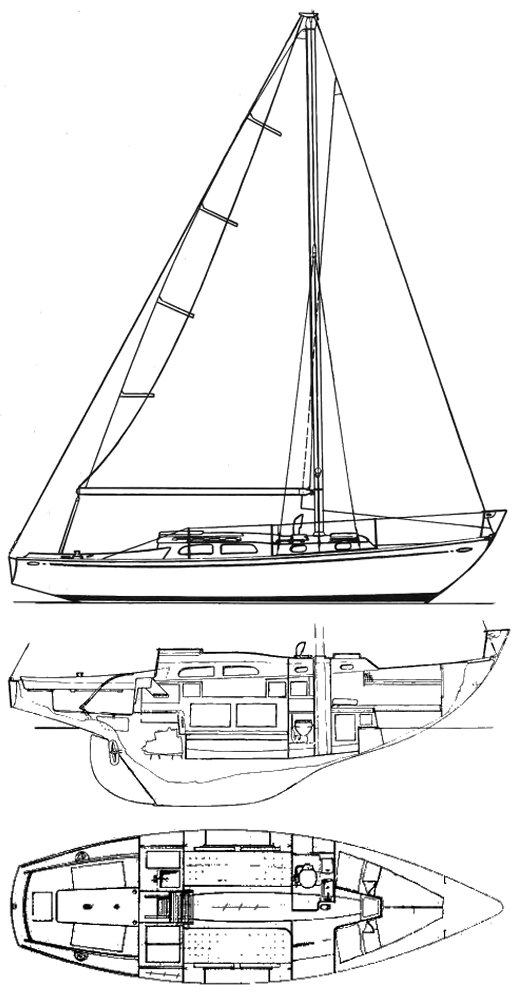

TRIPP LENTSCH 29
Built by Amsterdam Shipyard G. de Vries Lentsch Jr..(NED)
• Designed by William Tripp Jr.
General Information
Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1963
Dimensions
Length Overall (LOA):
8.81 m
Length Waterline (LWL):
6.25 m
Beam:
2.73 m
Draft (Max):
1.39 m
Weight & Ballast
Displacement:
3,500 kg
Ballast:
1,362 kg
Sail Plan
Foresail Area:
15.55 m²
Mainsail Area:
18.21 m²
Total Sail Area (calculated):
33.76 m²
Sail Area (reported):
33.72 m²
I (Fore Triangle Height):
9.91 m
J (Fore Triangle Base):
3.14 m
P (Mainsail Hoist):
8.53 m
E (Boom Length):
4.27 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Performance Ratios
Hull Speed:
6.07 knots
SA/Displacement (Calculated):
14.65
SA/Displacement (Reported):
14.92
Ballast/Disp Ratio:
38.92%
Displacement/Length:
399.25
Comfort Ratio:
27.90
Capsize Screening:
1.82
S-Number:
1.03
Notes
Although similar in appearance to the earlier TRIPP 30 (SEAFARER), this is a different design. (The displacement is an estimate since none was listed on the original brochure.) After the orginal builder closed, a few more boats were produced using the original tooling.
