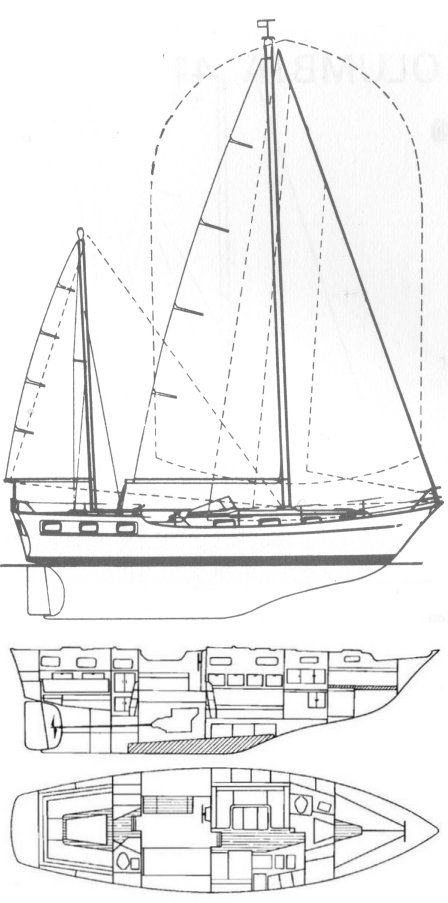

TRINTELLA IV
Built by Anne Wever (NED)
• Designed by E.G. van der Stadt
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1975
Dimensions
Length Overall (LOA):
12.21 m
Length Waterline (LWL):
9.80 m
Beam:
3.45 m
Draft (Max):
1.55 m
Weight & Ballast
Displacement:
11,177 kg
Ballast:
3,901 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
61.78 m²
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Power:
75 HP
Fuel Capacity:
151 L
Water Capacity:
500 L
Performance Ratios
Hull Speed:
7.60 knots
SA/Displacement (Reported):
12.62
Ballast/Disp Ratio:
34.90%
Displacement/Length:
330.71
Comfort Ratio:
43.50
Capsize Screening:
1.56
Notes
Thanks to 'whalesongportugal' for providing corrected information.
