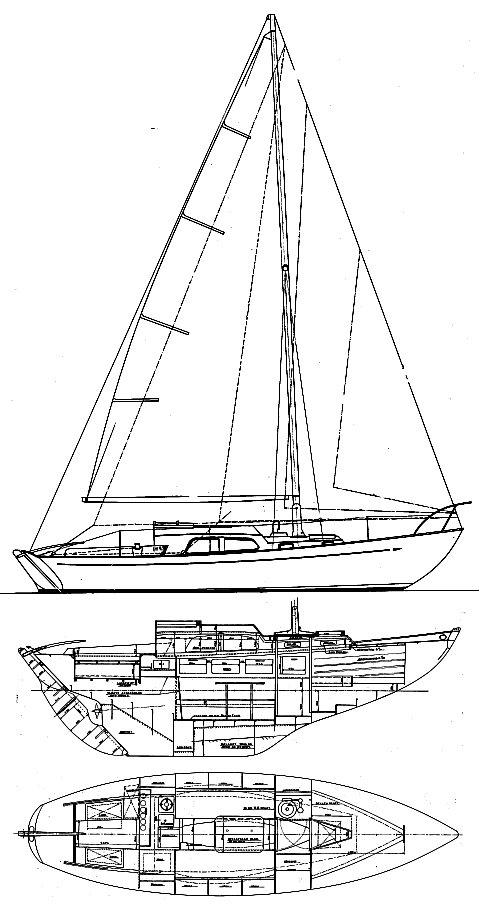

TRINTELLA I
Built by Tyler Moldings/Anne Wever
• Designed by van de Stadt
General Information
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1963
Last Built:
1976
Number Built:
260
Dimensions
Length Overall (LOA):
8.50 m
Length Waterline (LWL):
6.50 m
Beam:
2.52 m
Draft (Max):
1.30 m
Weight & Ballast
Displacement:
3,800 kg
Ballast:
1,750 kg
Sail Plan
Sail Area (reported):
42.92 m²
Engine & Systems
Engine Make:
Albin
Engine Type:
Diesel
Engine Power:
10 HP
Performance Ratios
Hull Speed:
6.19 knots
SA/Displacement (Reported):
17.98
Ballast/Disp Ratio:
46.05%
Displacement/Length:
385.90
Comfort Ratio:
33.32
Capsize Screening:
1.63
Notes
Originally intended for steel construction (TRINTEL I). Hulls molded by Tyler Boat Co. (UK) and finished by Anne Wever. Deck and coach roof are wood. Earlier boats have wood masts; Later delivered with aluminum spars.
