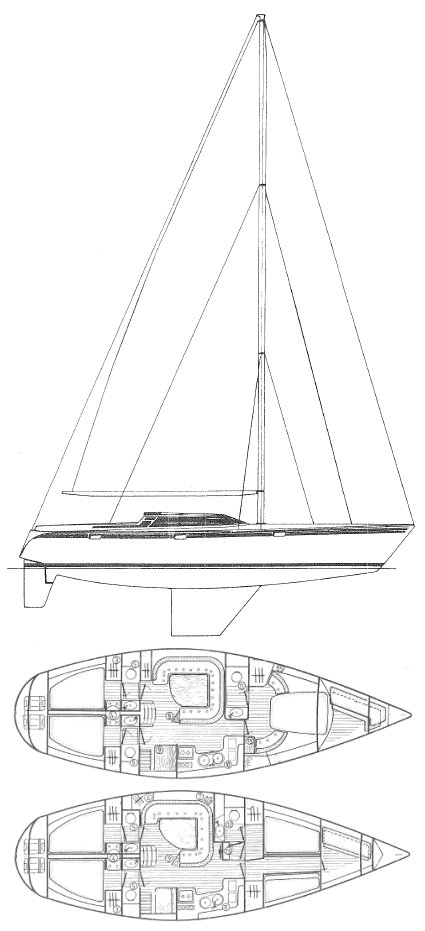

TRINIDAD 48 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Ribadeau Dumas
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1981
Last Built:
1987
Dimensions
Length Overall (LOA):
14.50 m
Length Waterline (LWL):
12.60 m
Beam:
4.60 m
Draft (Max):
2.65 m
Draft (Min):
1.37 m
Weight & Ballast
Displacement:
12,497 kg
Ballast:
4,500 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
47.98 m²
Mainsail Area:
47.21 m²
Total Sail Area (calculated):
95.19 m²
Sail Area (reported):
95.23 m²
I (Fore Triangle Height):
18.00 m
J (Fore Triangle Base):
5.33 m
P (Mainsail Hoist):
16.00 m
E (Boom Length):
5.90 m
Engine & Systems
Performance Ratios
Hull Speed:
8.61 knots
SA/Displacement (Calculated):
17.68
SA/Displacement (Reported):
18.05
Ballast/Disp Ratio:
36.00%
Displacement/Length:
174.22
Comfort Ratio:
26.55
Capsize Screening:
2.00
S-Number:
3.17
Notes
Also available as a ketch.
