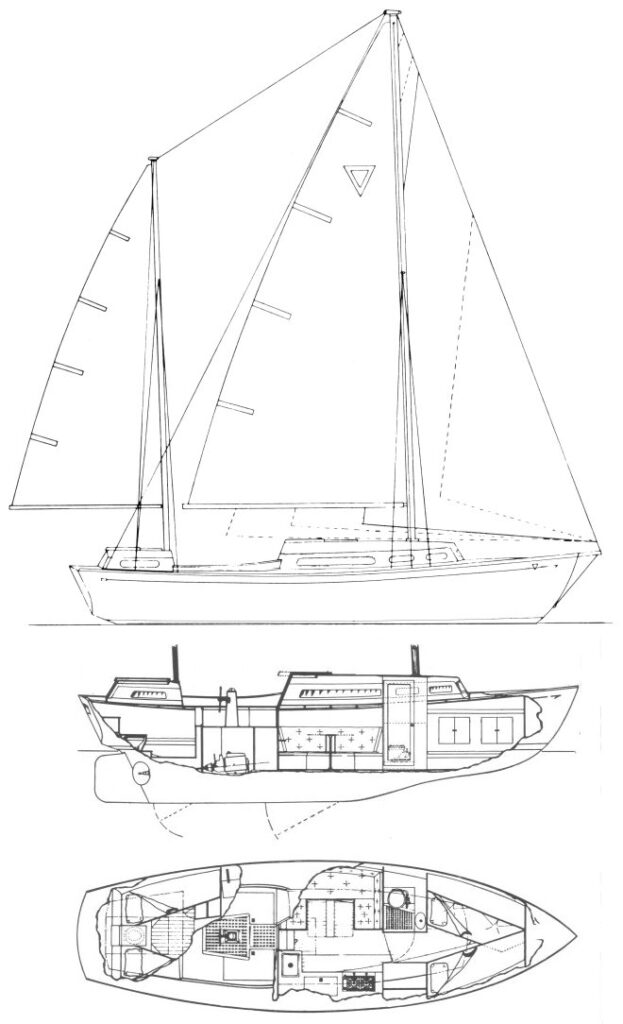

TRIANGLE 32
Built by Triangle Marine Co./Grampian Marine Ltd.
• Designed by Charles Angle
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1961
Last Built:
1968
Dimensions
Length Overall (LOA):
9.75 m
Length Waterline (LWL):
8.13 m
Beam:
3.05 m
Draft (Max):
2.13 m
Draft (Min):
1.07 m
Weight & Ballast
Displacement:
5,443 kg
Ballast:
1,361 kg
Sail Plan
Foresail Area:
17.37 m²
Mainsail Area:
18.39 m²
Total Sail Area (calculated):
35.76 m²
Sail Area (reported):
47.85 m²
I (Fore Triangle Height):
10.36 m
J (Fore Triangle Base):
3.35 m
P (Mainsail Hoist):
9.14 m
E (Boom Length):
4.02 m
Engine & Systems
Engine Type:
Gasoline
Engine Power:
30 HP
Fuel Capacity:
136 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
6.92 knots
SA/Displacement (Calculated):
11.56
SA/Displacement (Reported):
15.78
Ballast/Disp Ratio:
25.00%
Displacement/Length:
282.72
Comfort Ratio:
30.55
Capsize Screening:
1.75
S-Number:
1.40
Notes
Center cockpit, aft cabin. Twin/tandem steel centerboards. Sloop or Ketch. Most were sold as ketches.
