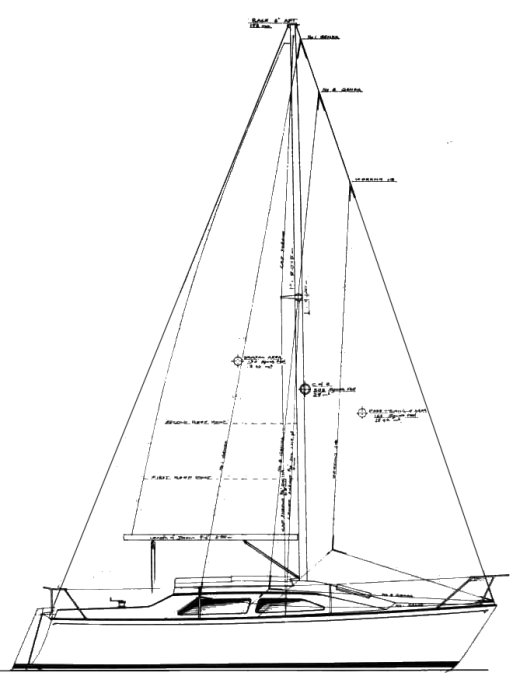

TRACKER 7.7
Built by Craddock Fibreglass Ltd. (NZ)
• Designed by Alan Wright
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
Wood/FG
First Built:
1976
Dimensions
Length Overall (LOA):
7.74 m
Length Waterline (LWL):
7.00 m
Beam:
2.47 m
Draft (Max):
1.40 m
Weight & Ballast
Displacement:
1,800 kg
Ballast:
907 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
27.96 m²
Engine & Systems
Performance Ratios
Hull Speed:
6.42 knots
SA/Displacement (Reported):
19.27
Ballast/Disp Ratio:
50.40%
Displacement/Length:
146.16
Comfort Ratio:
15.95
Capsize Screening:
2.05
Notes
Bilge keel verson - draft: 2.75'/.85m
