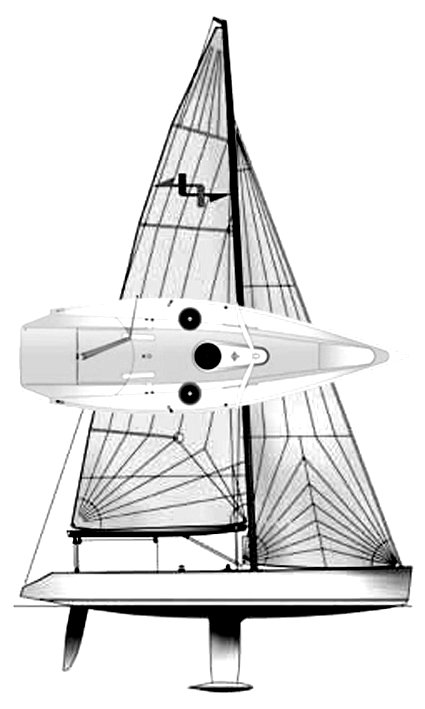

TOM 28 MAX
Built by K de Komposites (ESP)
• Designed by Ceccarelli Yacht Design
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2007
Dimensions
Length Overall (LOA):
8.48 m
Length Waterline (LWL):
7.10 m
Beam:
2.48 m
Draft (Max):
1.85 m
Weight & Ballast
Displacement:
1,450 kg
Ballast:
750 kg
Sail Plan
Sail Area (reported):
39.48 m²
Engine & Systems
Performance Ratios
Hull Speed:
6.47 knots
SA/Displacement (Reported):
31.42
Ballast/Disp Ratio:
51.70%
Displacement/Length:
112.98
Comfort Ratio:
12.27
Capsize Screening:
2.21
Notes
Originally design for sponsored match racing events.
