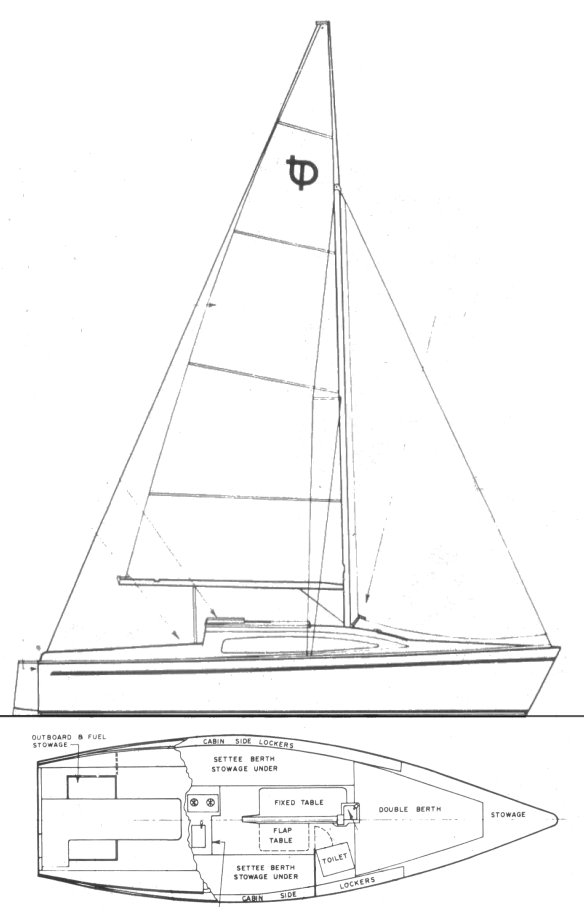

TIMPENNY 770
Built by Timpenny Yachts (AU)
• Designed by Colin Thorne
General Information
Hull Type:
Swing Keel
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1978
Number Built:
35
Dimensions
Length Overall (LOA):
7.70 m
Length Waterline (LWL):
7.18 m
Beam:
2.45 m
Draft (Max):
1.42 m
Draft (Min):
0.28 m
Weight & Ballast
Displacement:
1,550 kg
Ballast:
410 kg
Sail Plan
Sail Area (reported):
23.32 m²
Engine & Systems
Performance Ratios
Hull Speed:
6.50 knots
SA/Displacement (Reported):
17.75
Ballast/Disp Ratio:
26.46%
Displacement/Length:
116.65
Comfort Ratio:
13.65
Capsize Screening:
2.14
Notes
Swing and drop keel versions.
