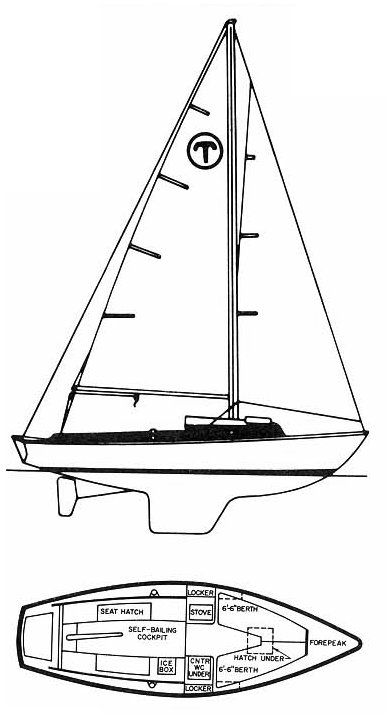

TEMPEST 23 (O'DAY)
Built by O'Day Corp. (USA)
• Designed by Philip Rhodes
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1964
Last Built:
1968
Number Built:
390
Dimensions
Length Overall (LOA):
7.06 m
Length Waterline (LWL):
5.18 m
Beam:
2.34 m
Draft (Max):
1.12 m
Weight & Ballast
Displacement:
1,361 kg
Ballast:
567 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
10.51 m²
Mainsail Area:
10.68 m²
Total Sail Area (calculated):
21.19 m²
Sail Area (reported):
21.18 m²
I (Fore Triangle Height):
7.97 m
J (Fore Triangle Base):
2.64 m
P (Mainsail Hoist):
7.01 m
E (Boom Length):
3.05 m
Engine & Systems
Performance Ratios
Hull Speed:
5.52 knots
SA/Displacement (Calculated):
17.25
SA/Displacement (Reported):
17.58
Ballast/Disp Ratio:
41.67%
Displacement/Length:
272.60
Comfort Ratio:
16.30
Capsize Screening:
2.13
S-Number:
2.02
Notes
Rhodes design #756. Dick Carlson was an employee at the Philip Rhodes firm at this time.
